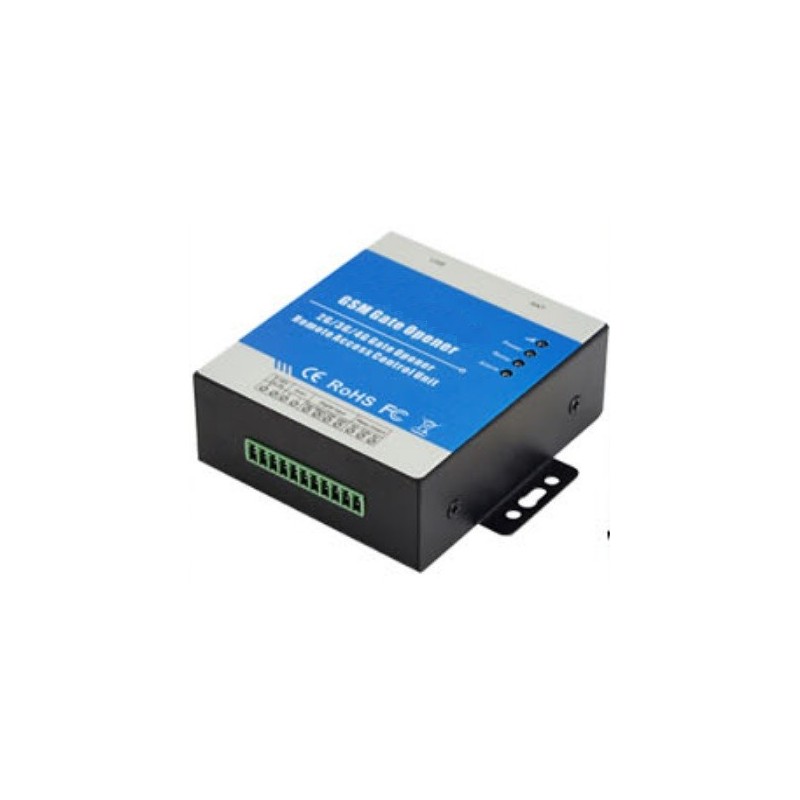

Access management via call from mobile phone. GSM Relay with room for 999 users, 3G 4G LTE
Product code: GSM-GATE
GSM gate with a memory of up to 999 phone numbers The perfect unit for access control of a port or door lock, for example. Parking houses, and apartment blocks, where access to residents only wanted access. The output is activated by calling the unit up and when it has approved the phone number, it gives a recording tone and the relay output is activated. The relay output is interrupted via a time limit that can be changed between 0.5 and 998 seconds.
Mobile Gate also has 2 digital inputs as well as exit to a siren and they can be used in connection with the 2 first phone numbers list To send alarm via SMS, by activating the digital inputs. If the alarm is running it in sequence to numer 1 to no 10
NOTE! Using the GSM network 850 - 1900 MHz (requires installation of SIM card with ordinary speech subscription not included)
Programming is done using. SMS messages, Android app or computer via USB
999 different phone numbers can be programmed via SMS message, iOS and Android app or computer via USB.
2 Digital input Contact inputs for alarm messages
1 Relay output 240vac / 3amp. < p>
GSM-GATE
3 Items
Data sheet
- Forsyning
- 9 -15 VDC, maks. 2 W leveres med strømforsyning
- Udgange
- 1 relæudgang slutte 230 VAC maks. 3 A
- Driftstemperatur
- -20~+60 °C
- Tilslutning
- via skrueterminal
- Antenne
- Ja, medfølger
- Luftfugtighed
- Relative humidity 90%
- Dimensioner
- W88mm X D78mm XH32mm
- Indgang
- 2 digital indgang kontakt indgange til alarm beskeder
GSM I / O Box. Compact access control with up to 999 users
Specified time range for access
3G / 4G 850/900/1800/1800/1900 MHz
2 digital contact inputs
1 Relay output 230vac Max. 3A
Supply voltage: 9 -15VDC
Goal: 88 x 70 x 30 mm
Operating temperature: -20 - + 60 ° C
Antenna included
App for Android and iOS
