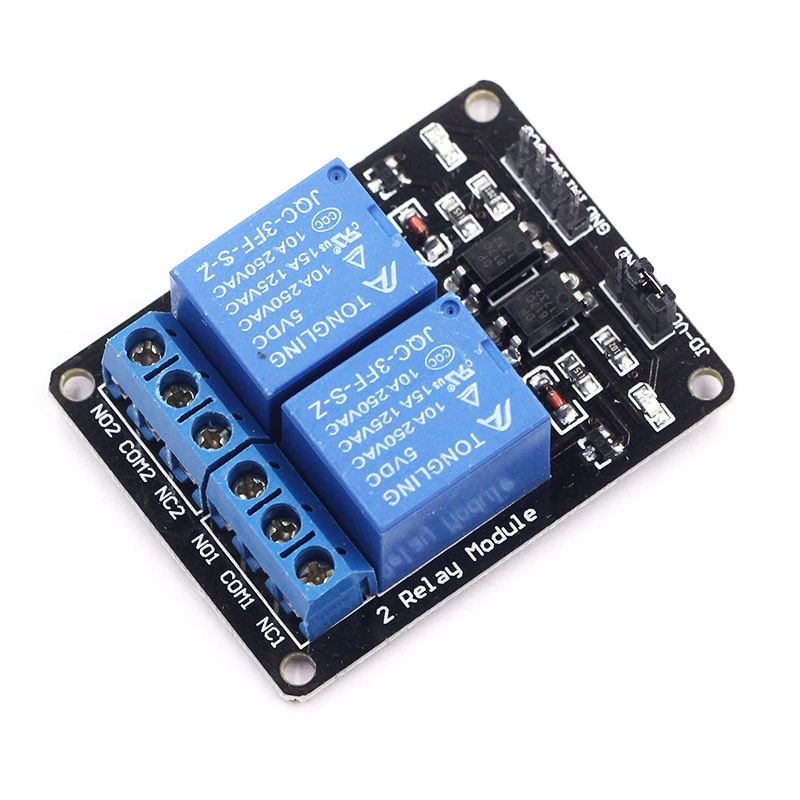

2-channel relay circuit to PAY terminals, switching relays COM / NO / NC, 5VDC supply voltage. optically isolated inputs
Product code: REL5V2
Relay Module PAY payment terminals that provide galvanic isolation to the connected equipment.
The given contact currents are resistive load.
inductive (coil, motor, etc.) load can damage the relay contacts
REL5V2
13 Items
Data sheet
- Forsyning
- 5VDC fra PAY terminal eller separat (jumper)
- Formfaktor
- åben printmodul uden kabinet - til indbygning
Module with 2 relay outputs
5VDC from optically isolated digital input
GND, VCC, IN (digital input)
COM, NC, NO
Max load: AC 250V / 10A DC 30V / 10A - non inductive load!
REMEMBER THE RIGHT CABLE FOR YOUR NAYAX TERMINAL!
