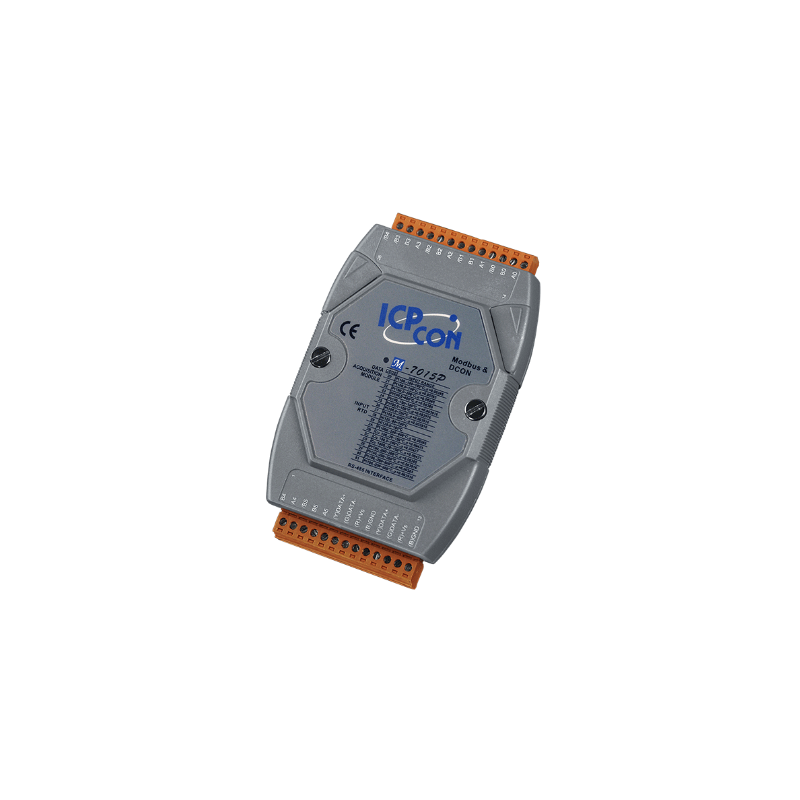

6-ch RTD Input Module for 2/3-wire Pt100, Pt1000, 16 bit res., MODBUS RTU, RS485, 12Hz SR

Product code: MOD485-RTD6-I

6 RTD Inputs for Temperature sensor
Lead Resistance Elimination for 3-wire Connection
High Resolution: 16-bit
Open Wire Detection
Built-in Dual Watchdog
RS485 MODBUS RTU
Baud rate: 1200 - 115,2kbps
Supply voltage: 10 - 30VDC
Temp: -25 - +75°C
Dim: 123 x 72 x 36 mm
DIN-mount

  • Add to Comparison Remove from Comparison
    • 3,282.00 DKK
    Tax excluded
    Last items in stock
    Quantity

    A 6-channel RTD input module that is used for measuring temperatures using RTD sensors and each channel can be connected to a different type of sensor. It is specifically designed for long-distance RTD measurement, and features automatic compensation for three-wire RTD, meaning that accurate measurements can be obtained regardless of the length of the wires. Fully RoHS-compliant and features 4 kV ESD protection as well as 3000 VDC intra-module isolation. Supports Modbus RTU and DCON protocols, which can be configured via software.

    MOD485-RTD6-I
    1 Item
