6 x Temperature sensors 2-3 Wire, PT100, PT1000, NI120, CU50 / 100/1000. 16bit, 12Hz Total, RS485 Bus, 10 - 30VDC

Product code: M485-ADRTD6-I

RS485 module for 6 Temperature sensors
6-channel RTD input
3-wire RTD input with elimination of wire resistance
Resolution: 16-bit
Individual channel configuration
Disconnected sensor detection
Double Watchdog
Supply: 10 - 30vdc
Operating temperature: -25 to + 75 ° C

  • Add to Comparison Remove from Comparison
    • 3,306.00 DKK
    Tax excluded
    On the way in
    Quantity

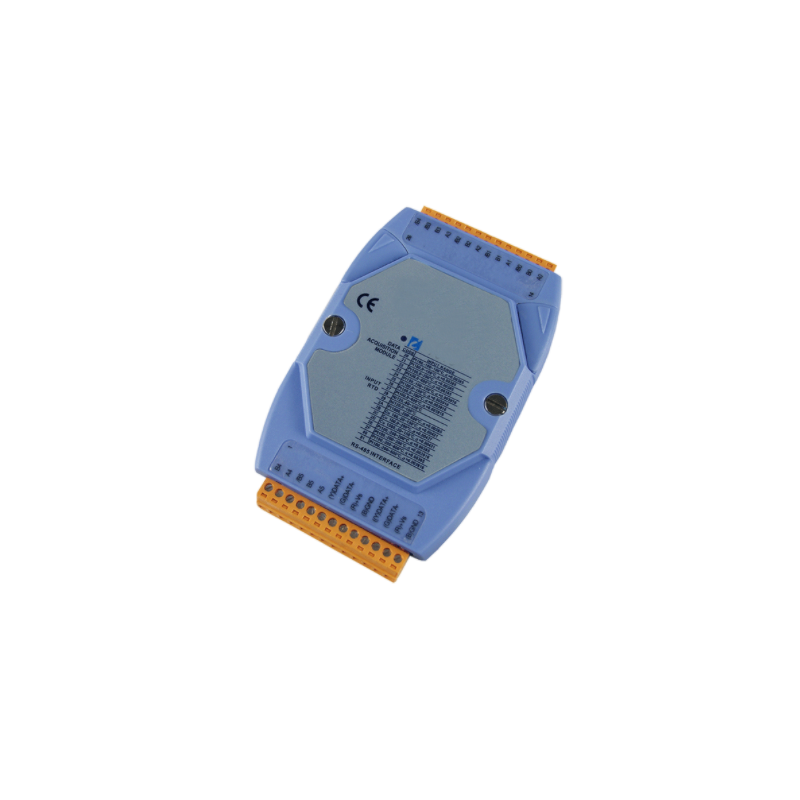

    M485-adrtd6-I is a series of 6-channel RTD input modules used to measure temperatures using RTD sensors, and each channel can be connected to another type of sensor. M485-ADDRTD6-I is specifically designed for long-distance RTD measurement and has automatic compensation for 3-wire RTD, which means that accurate measurements can be achieved regardless of the length of the wires. The M485-ADDRTD6-in series is full RoHS compliant and has 4 kV ESD protection as well as 3000 VDC intra modulus solution.

    M485-ADRTD6-I
