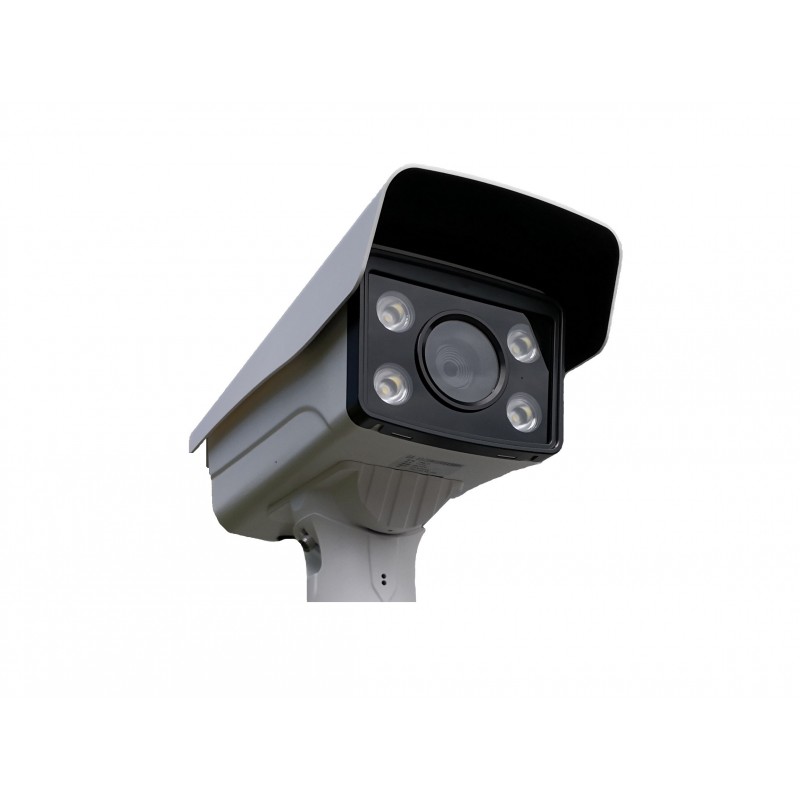

Camera plate recognition software included. IP66, 1080P POE.

Product code: KAM-NR-IN

Black/White list
LED light
Automatic recognition
Can be controled via network
SD card slot for data
Up to 70° angle recognition
Resoliution up to 1080P (1920X1080) 2MP
Powered via POE
Max power usage 7.5W
IP66
Signal directly to gates/port


  • Add to Comparison Remove from Comparison

    • Call For Price
    0.00 DKK
    Tax excluded
    On the way in
    Quantity

    Built-in license plate recognition algorithm for vehicles.

    Black White list (Hereafter called B / W list) management

    Built-in LED light, can be used for fill-in light at night for easier recognition

    The algorithm can automatically adjust the camera's brightness to ensure the quality of the image capture throughout the day

    The algorithm can automatically adjust the camera's brightness to the vehicle's brightness, to ensure that NP captures the image regardless of backlight

    Supports video, reel and reel video hybrid trigger capture mode

    Comes with a Prime lens, which can capture from 2.8 to 10 meters of recognition, with automatic adjustment

    Supports remote access and control

    Supports voice broadcast and two-way voice intercom

    Supports real-time or offline SD card storage when network recovery occurs, can automatically upload capture data

    Supports various SDK docking methods as it is more convenient for camera integration and development

    Multi-IO design controls the gate and causes it to open, close, normally open, normally closed, receive tripping and anti-breakdown signal and receive multi-channel gate state signal

    Maximum recognition up to 70 ° angle

    Fully supports NP recognition

    Supports coil function and non-motor vehicle filtering

    KAM-NR-IN

    Data sheet

    Forsyning
    DC 12 V / PoE (IEEE 802.3bt)
    Opløsning
    Up to 30 fps at 1920 x 1080
    Strømforbrug
    45W max
    Netværk
    10/100/1000 Base‐T Ethernet, RJ‐45 connector
    Kanaler
    3 stream channels
    Frekvens
    60/50 fps at 1920 x 1080 (60/50 Hz)
    Hukommelse
    Micro SD card slot (SD/SDHC/SDXC/UHS‐I, Class 10) * UHS‐II card types not supported
    Lyd
    1 In (microphone jack, 3.5 mm / 0.14”) / 1 Out (phone jack, 3.5 mm / 0.14”)
    Digital I/O
    1 In / 1 Out
    Dimensioner
    Ø86mm x 191 mm (Ø 3.4” x 7.5”)
    Protokol
    DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, QoS (DSCP), RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA
    Certifications
    CE, FCC, RCM, RoHS compliant
    Video
    H.265, H.264, MJPEG
    Other
    Max car speed: 100 km/h (62 mph)
    Drifttemperatur
    -20 °C ~ 55 °C
