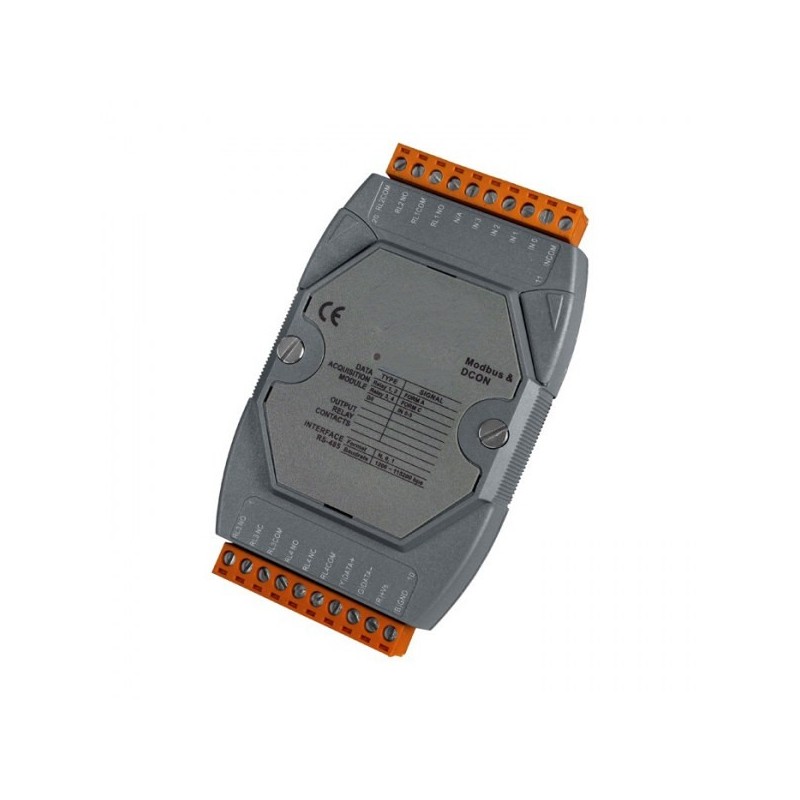

4 x isolated digital input (counter) and 4 x relay output - DCON and Modbus RTU -25 ~ +75°C

Product code: M485-REL4P-I

4 x Digital input and 4 x relay output
Form A and Form C Power relay
Source and Sink type of D/I
D/I the entries is also 16-bit counter
Configurable Power-on settings
Configurable Safe Value setting
Dual Watchdog
Temperature range -25 to + 75 ° C
Supply voltage: 10 - 30VDC
DIN bracket

  • Add to Comparison Remove from Comparison
    • 1,444.00 DKK
    Tax excluded
    On the way in
    Quantity

    M485-REL4P-I

    Data sheet

    Forsyning
    10 ~ 30 VDC, 1.4 W
    Udgange
    Digital output 4 x Electromagnitic relay
    Driftstemperatur
    -25 - +75 °C
    Interface
    RS-485 Modbus RTU, DCON
    Stik
    Screw Terminal
    Watchdog
    Yes
    LED
    1 xLED as Power/Communication Indicator. I/O LED Indicators: 8 LEDs as Digital Input/Relay Output Indicators
    Baudrate
    1200 ~ 115200 bps
    Montering
    Wall, DIN-Rail mount
    Isolation
    Intra-Module Isolation, Field-to-Logic 3750 VDC
    Dimensioner
    72 mm (W) x 123 mm (H) x 35 mm (D)
    Indgangsimpedans
    10 kΩ
    Protokol
    Modbus RTU: Slave, DCON: Slave
    Tæller
    Max Count 65535 (16-bit) Max. Input Frequency 100 Mhz Min. Pulse Width 5 ms
    Indgang
    4 x Digital input
    ESD
    ±4 kV Contact for each Terminal ±8 kV Air for Random Point
