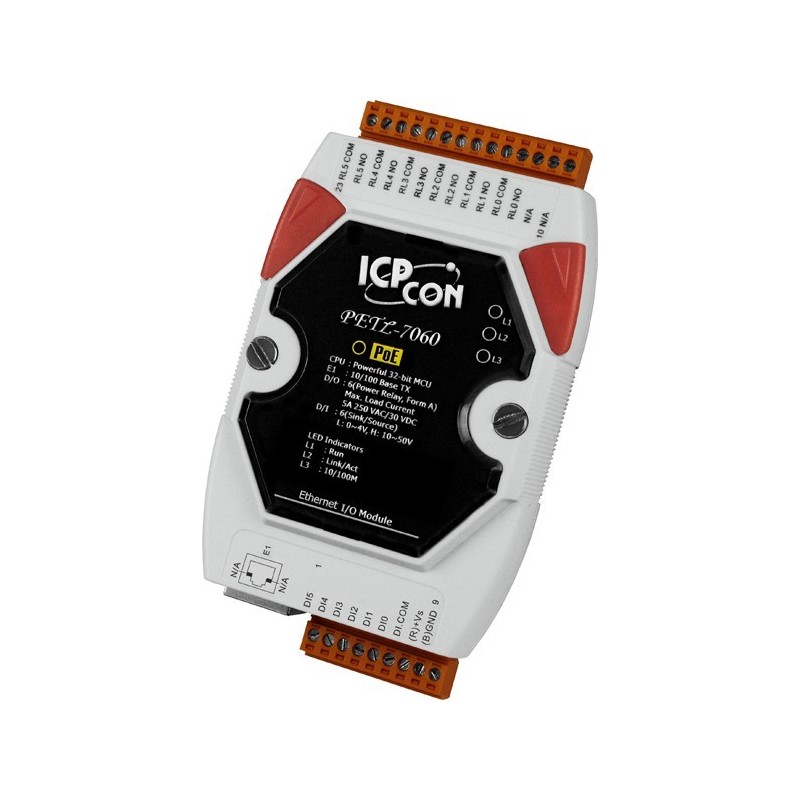

6 x Power relay, 6 x digital input over Ethernet Modbus/TCP 1 x RJ45, PoE or 12 - 48VDC
Product code: ETH-MOD6I6R-P-I
These I / O units make use of the Modbus / TCP protocol for reading and managing digital signals.
A digital signal on a module input can be mirrored on an output of another module connected to the network (I / O Pair Connection ).
multiple modules can send to the same recipient, so the signals can be assembled in one place.
It is also possible to have multiple recipients and one transmitter, so an alarm somewhere can trigger alarms in several places.
Da ETH-MOD6I6R PI supports MODBUS / TCP, they can also be used with automation systems based on this protocol.
ETH-MOD6I6R PI can be powered via PoE or external power supply.
ETH-Mod6i6R PI has built-in "Safe Value" feature that, by communication errors, can set the outputs to a predetermined state.
ETH-MOD6I6R-P-I
1 Item
Data sheet
- Forsyning
- 12 - 48 VDC 2 W eller PoE
- Udgange
- 6 relæer Type A (slutte) Belastning: 30 VDC / 5A maks. pr. kanal 250 VAC / 5A maks. pr. kanal
- Stik
- Skrueterminaler
- Watchdog
- 2 stk. Wachdog timer. Den ene bruges til at genstarte modulet, hvis det fryser/låser. Den anden kan sætte udgangene til en forud bestemt værdi ved kommunikationsfejl
- Konfiguration
- Via webbrowser
- Isolation
- 3750 VDC
- Dimensioner
- 123 mm x 72 mm x 35 mm
- Indgang
- 6 stk. isolerede med fælles stel Logisk 0: 0 – 4 V Logisk 1: 10 – 50 V
Modbus TCP Slave Module LAN or Internet
6 x Relay, End Contact 250VAC / 5A, 30VDC / 5A
Avoid inductive load
6 x Digital input. High is 10 - 50V
supply via PoE or 12 - 48VDC
is with I / O Pair Connection - Input is mirrored to exit.
with important "Sale Setting" which sets relays as desired
watchdog which sets relays in "Safe Setting" in error detection
Dim: 123 x 72 x 35 mm
built-in your bracket
