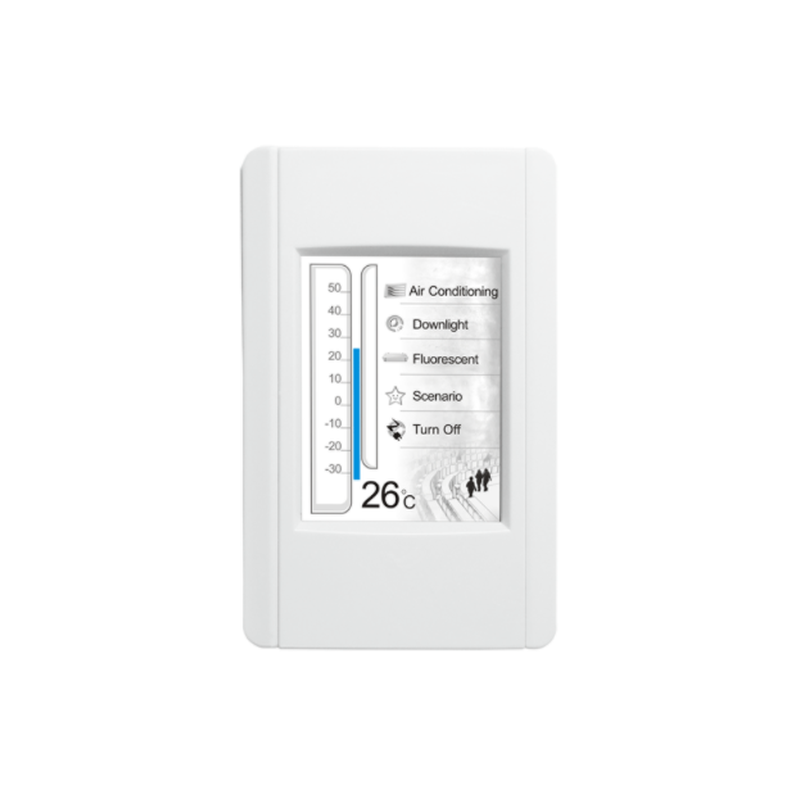

HMI 2.8" Controller panel with touch Modbus / TCP / RTU RTC. Ethernet and PoE

Product code: HMI2.8"ETH-I+

2.8" Touch HMI device with Ethernet and PoE
High Resolution color touchscreen
RTC (Real Time Clock)
GUI design
Modbus TCP/RTU protocol
ESD protection: 4 kV
Operating temperature: -20 ° C ~ 70

  • Add to Comparison Remove from Comparison
    • 2,178.00 DKK
    Tax excluded
    On the way in
    Quantity

    2.8 inch H-series of small touch HMI and designed for building and home automation. The 2.8 inch series is equipped with a high resolution TFT colorouch screen and fits in plain wall outlet on the wall. In addition, it is seamlessly integrated with rich I / O modules and presents beautiful, flexible and custom image frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control points.

    For PLC users delivers HmiWorks Ladder designer, and for IT users, C-language environment is supplied. In particular, it only takes no more than 30 minutes to learn how to create an application program with devices in the TPD series when using Ladder designer.

    HMI2.8"ETH-I+

    Data sheet

    CPU
    32-bit RISC CPU
    Driftstemperatur
    -20 ~ +70°C
    Stik
    Ethernet interface: RJ-45 x 1, 10/100 Base-TX
    PoE
    IEEE 802.3af, Class1 (48 V)
    Hukommelse
    16 MB SDRAM/16 MB Flash
    Montering
    Wall Mount
    IP-Tæthed
    Front Panel: IP40
    Software
    Free HMIWorks development tool Suppots C programming language and Ladder Designer Supports the custom communication protocol (C language)
    Dimensioner
    127 mm x 92 mm x 31 mm
    LCD
    2.8” TFT -Resolution 240 x 320 , 65535 colors
    Touch
    Resistive Touch
