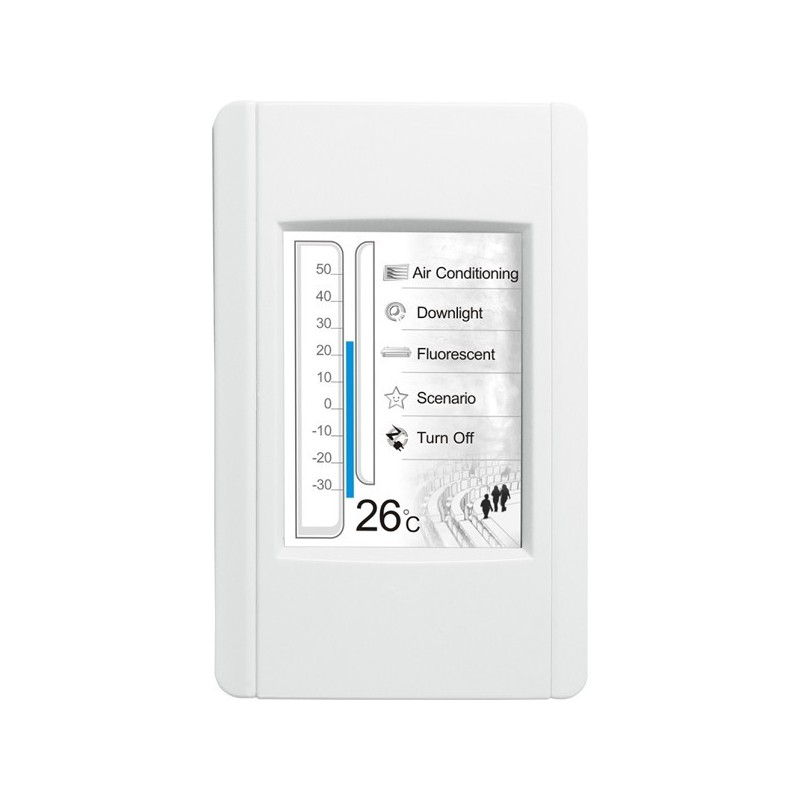

HMI 2.8" Controller Panel with Touch. RS485. Modbus RTU. RTC, GUI. 12 - 48VDC

Product code: HMI2.8"RS485

2.8" HMI control panel for I / O modules
can be connected to many RS485 modules from the manufacturer
with TFT display and touch
RS485 Bus, Modbus RTU protocol
USB port for programming
Free HmiWorks Development Software
RTC Real Time Clock
Supply Voltage: 12 - 48VDC
Dim: 119 x 76 x 33 mm

  • Add to Comparison Remove from Comparison
    • 1,793.00 DKK
    Tax excluded
    On the way in
    Quantity

    2.8 inch series with small touch HMI and designed for building and home automation. The TPD 2.8 inch series is equipped with a high resolution TFT colorouch screen and fits in plain wall outlet on the wall. In addition, it is seamlessly integrated with rich I / O modules and presents beautiful, flexible and custom image frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control points.

    For PLC users delivers HmiWorks Ladder designer, and for IT users, C-language environment is supplied. In particular, it only takes no more than 30 minutes to learn how to create an application program with devices in the TPD series when using Ladder designer.

    HMI2.8"RS485

    Data sheet

    CPU
    32 bit RISC 50 MHz
    Forsyning
    12 - 48VDC, 2.5W
    Stik
    Seriel port: Skrueterminal USB: Type A mini hunstik
    Porte
    Seriel RS485 (maks. 115,2 Kbits/sek) og USB
    Montering
    Panel
    Skærm
    240 x 320 TFT skærm på 2,8” med 16 bits farve dybde
    Software
    Software til download og udvikling af brugerprogrammer medfølger
    Dimensioner
    119 x 76 x 33 mm
