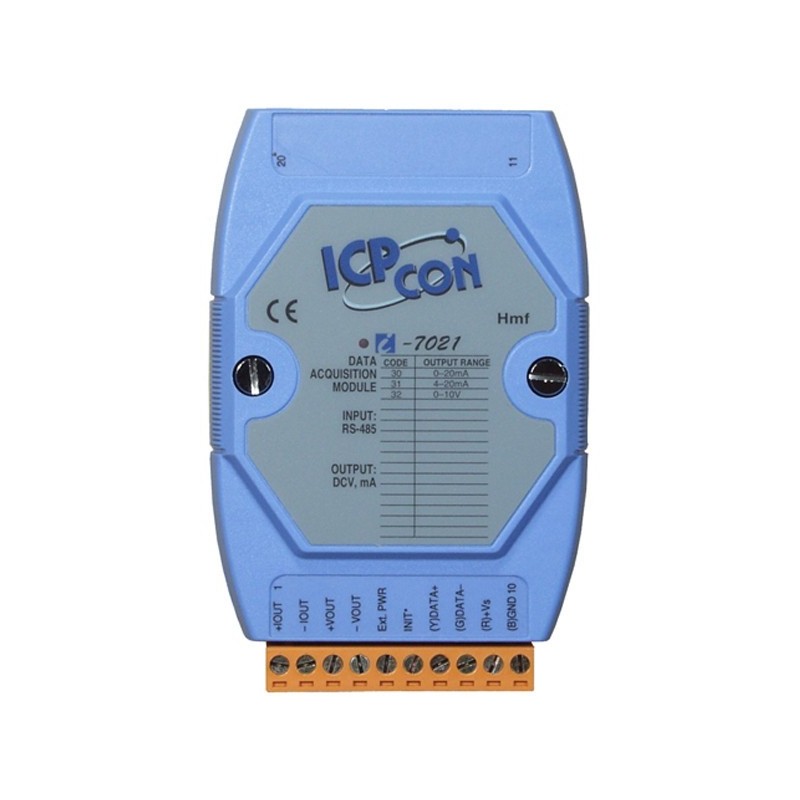

1 x analog output, 0 to +10 volts, 0-20mA, 4-20MA, 12bit, RS485

Product code: M485-DA12-I

Power or Voltage Output
0 - +10VDC, 0 - 20mA, 4 - 20mA
Resolution: 12-bit
Software Selectable Power or Voltage Output
Output Cable Detector for Power Output (4 - 20mA)
Backlink Voltage or Current
Configurable Power-on Value
Configurable Safe Value
3000 VDC Intra Module Isolation
Programmable Output Slope
Dual Watchdog
Temperature Range: -25 to +75°C

  • Add to Comparison Remove from Comparison
    • 1,958.00 DKK
    Tax excluded
    Last items in stock
    Quantity

    M485-EN12-I have a 12-bit analog output designed for both voltage and power output. Output can be selected either internally or externally via a jumper. There are also options to set boot and secure values. Both support DCON protocols that can be configured via software.

    M485-DA12-I
    1 Item

    Data sheet

    Forsyning
    10 - 30 VDC, 1,4 W
    Udgange
    0 - 10 V, 0 - 20 mA, 4 - 20 mA
    Opløsning
    12 bit, ±0,1% præcision(mA) ±0,2 % (V)
    Isolation
    3000 VDC
    Stabilitet
    Nulpunktsdrift: Spænding: ±30 µV/°C Strøm: ±0,2 µA/°C. Kontrolmåling af udsendt værdi: ±1 % Drift af følsomhed: ±25 ppm/°C
