Solid state relay for control of 24-280 VAC. Can be controlled directly by a TTL output or 3 - 32VDC / 8mA

Product code: P-RELAY-L

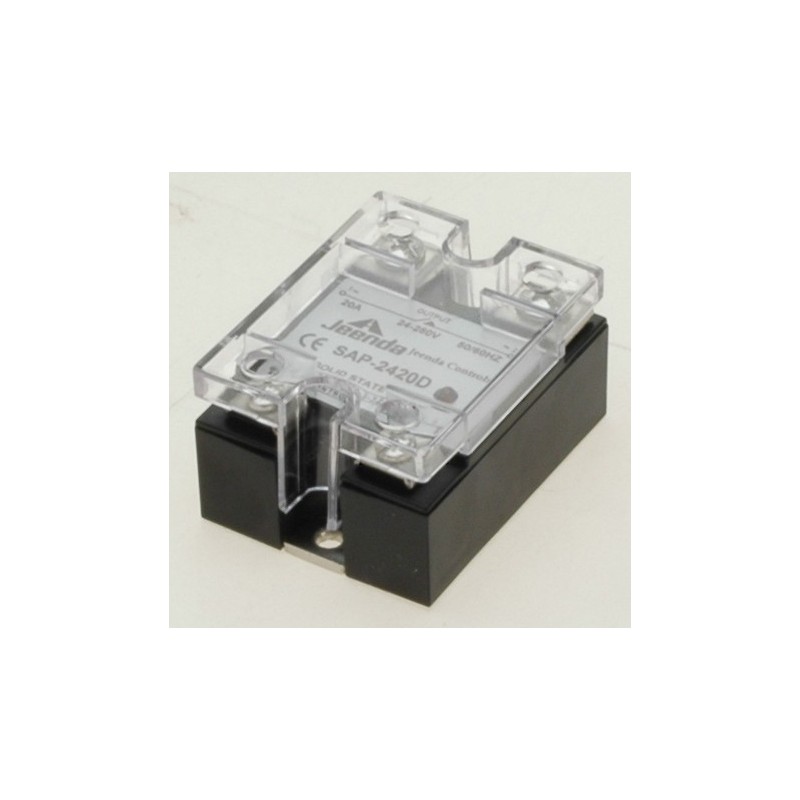

280 VAC 20 A solid state relay
Flange-mounting
ONLY for AC voltage

  • Add to Comparison Remove from Comparison
    • 271.00 DKK
    Tax excluded
    On the way in
    Quantity

    Contains no moving parts, unlike a mechanical relay. Therefore, solid state relays longer life and faster than mechanical relays. Kirke managing P-RELAY-L can be used one of DANBITs I / O cards with TTL output.
    relay panel mounting on the heat dissipating metal surface.
    Pulling of 3-32 VDC - 8 mA at 5 VDC.
    data Contact 24-280 VAC, 47-63 Hz, 20 A, max. ONLY for AC switching
    Isolation 2000VAC .
    Switching time 10 ms.
    visual indication of the relay position.
    Screw terminals for all connections.

    P-RELAY-L

    Data sheet

    Driftstemperatur
    -40° ~ +40° C
    Dimensioner
    31 x 44 x 55 mm (H x B x D)
