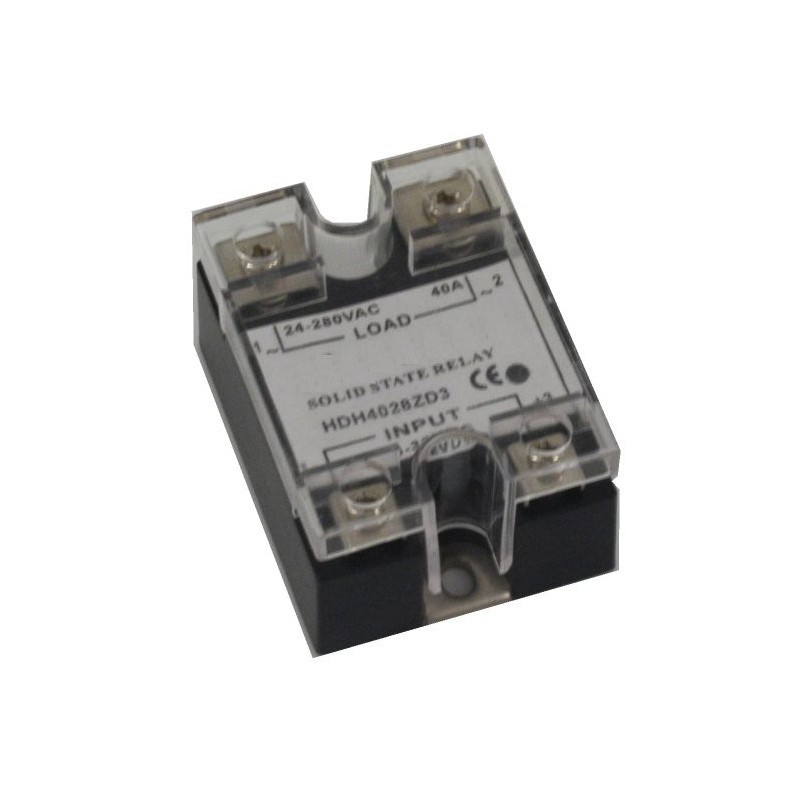

Solid state relay for control of 24 to 280 VAC / 120Amp. Can be controlled by a TTL output and 3 - 32VDC. Only for AC voltage!

Product code: P-RELAY

280 VAC 120 A solid state relæ til panelmontering

  • Add to Comparison Remove from Comparison
    • 617.00 DKK
    Tax excluded
    On the way in
    Quantity

    Contains no moving parts, unlike a mechanical relay. Therefore, solid state relays longer life and faster than mechanical relays. Kirke managing P-RELAY (-L) can be used one of DANBITs I / O cards with TTL output. Relay panel for mounting on the heat dissipating metal surface.
    Pulling of 3-32 VDC - 8 mA at 5 VDC.
    contact details 24 to 280 V AC, 47- 63 Hz, 120 A, max.
    Isolation 2000VAC. < br> Switching time 10 ms.
    visual indication of relay position.
    Screw terminals for all connections.

    P-RELAY

    Data sheet

    Driftstemperatur
    -40° ~ +40° C
    Dimensioner
    31 x 44 x 55 mm (H x B x D)
