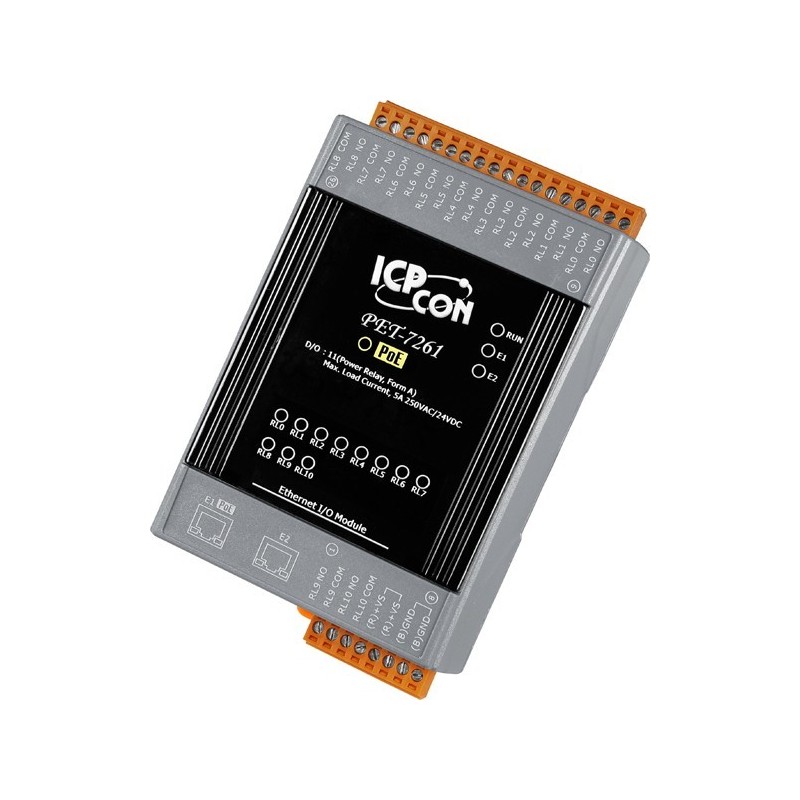

11-channel Power Relay Module for Ethernet / MODBUS with PoE. 2 LAN ports for Daisy Chain

Product code: ETHIO11PR-P2I

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
2-port Ethernet switch for daisy-chain topology
Double watchdog
Wide operating temperature range: -25 ~ + 75 ° C
I / O pair connection. Mirrors the input to output
Built-in I / O to 11 x Power relay: 250VAC / 24VDC 5A
Supply voltage: 10 - 30VDC
PoE voltage is not fed to the LAN port 2
DIN mount

  • Add to Comparison Remove from Comparison
    • 2,399.00 DKK
    Tax excluded
    Last items in stock
    Quantity

    ETHIO11PR-P2i gives 11 Form A-electromechanical relays. It has optical isolation to 3000 VDC of the transient over-voltage protection and has no channel-to-channel isolation. Power-on value and safe value for the relay are programmable. It can be safely used in applications where hazardous voltages.

    ETHIO11PR-P2I
    1 Item

    Data sheet

    Forsyning
    10 - 30 VDC, 2,5 W via klemrække eller PoE
    Udgange
    11 stk. relæer ( Slutte ) maks 250VAC/ 5 A eller 24 volt DC / 5 A
    Netværk
    10/100 Mbit m/RJ45-stik. Indbygget 2 ports switch PoE videre føres ikke
    Software
    Leveres med konfigureringssoftware til Windows 2000, XP, Vista, WIN7/8/10
    Protokol
    Modbus/TCP, TCP/IP og UDP
