7 x Relay outputs COM N.O. Dry relay contacts for 24V / 1A, 120VAC / 0.5A RS485 bus, 10 - 30VDC

Product code: M485-REL7-I

7 relay outputs (normally open contact)
Glavanisk isolated outputs
Switching time: ON: 5ms
RS485 bus
DIN bracket
10 - 30VDC / 1.5Watt

  • Add to Comparison Remove from Comparison
    • 1,061.00 DKK
    Tax excluded
    Physically in stock
    Quantity

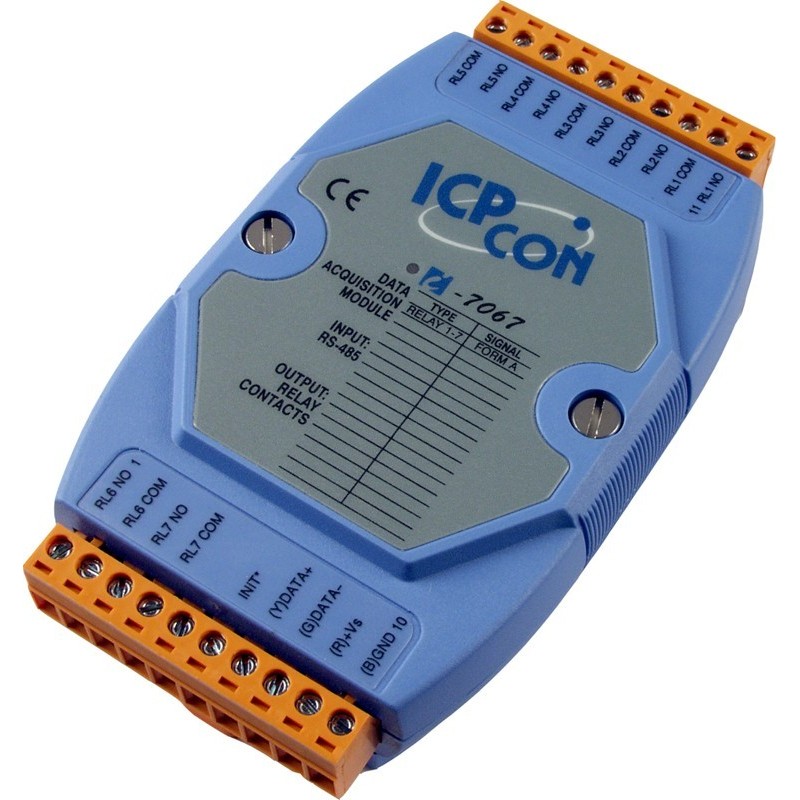

    7-channel relay output data acquisition module, which can be communicated via the RS-485

    M485-REL7-I is intelligently designed to allow monitoring of the signal processing system and ensure the value options. M485-REL7-I is a cost effective solution for a variety of valuable industrial control signals and systems. DCON utility can help users to configure and test the M485-REL7-In Relay Output module. There are lots of library functions and demo programs that allow users to easily develop programs for Windows, Linux and DOS operating systems. The communication interface is Modbus protocol over RS-485th Users can mount the modules on a DIN rail, a panel or a wall. Modules have a screw terminal to connect to the signals.

    M485-REL7-I
    5 Items

    Data sheet

    Forsyning
    10 - 30 VDC, 0,8 W via klemrække
    Udgange
    7 type A (slutte) relæer
    Kontaktdata
    AC: 125 V / 0.5 A, DC: 24 V / 2 A Lukketid: 5 ms, åbnetid: 2 ms
