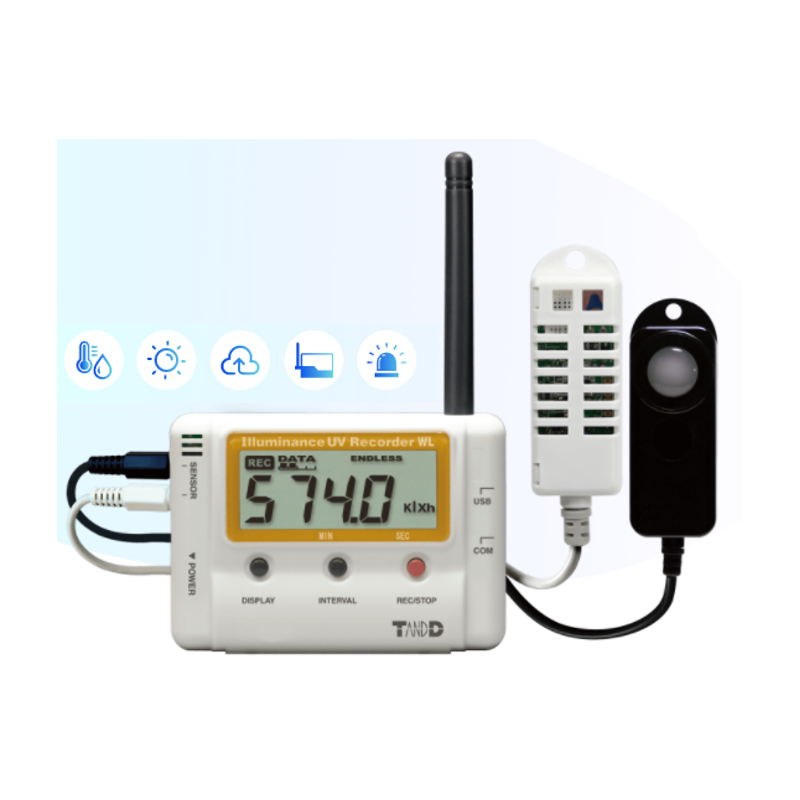

Temperature, humidity, UV, Brightness data logger. Wireless to data collector 150m, 0 - +55°C, 10 - 95% RH, Lux, MW
Product code: LOG-L574-H
LOG-L574-H series allows you to mix and match a variety of wireless radio communications loggers with different base units or data collectors to meet your needs. Logged data can be sent automatically via the network or mobile communications to be stored in the cloud storage or to a specific location.
LOG-L574-H can not only measure and record UV, brightness, temperature and humidity, but can also register and show cumulative UV and brightness.
lOG-L574-H loggers have a wireless radio communications space of compatible base units of up to 150m (492ft).
Data can be transferred from a logger to a base unit and then automatically uploaded to the cloud storage, or stored at a particular location. Data can also be checked on your PC monitor or on site with one of our compatible handheld data collectors.
It is perfect to use for the protection of exhibits and archives in museums and libraries where you want to manage different measuring points on once.
LOG-L574-H
1 Item
Data sheet
- Forsyning
- AA Alkaline Battery (LR6) x 1
- Opløsning
- Temperatur 0.1 °C fugt 0.1 %RH
- Driftstemperatur
- Temperature: -10 to 60 °C Humidity: 90 %RH or less (no condensation)
- Nøjagtighed
- ±2.5 %RH at 25 °C, 10 to 85 %RH ±4.0 %RH at 25 °C, 0 to 10 % or 85 to 99 %RH For temperatures other than 25 °C and between 0 °C and 80°C, add ±0.1 %RH per degree difference from 25. Humidity Hysteresis: ±1.5 %RH or lower
- Måleområde
- -30 to 80 °C og 0 -99% RH
- Software
- Windows 2000, XP, Vista, Win7/8/10 Med avancerede funktioner til dataopsamling og –lagring, grafisk visning m.m.
- Dimensioner
- H 55 mm x W 78 mm x D 18 mm(excluding protrusions) Antenna Length: 60 mm
Wireless Temperature Logger with memory
Sending measurement data to the data collector (base station) at 870MHz
Distance between the data logger and data collector up to 150 meters
Data Logger is not on-line
8,000 measurements per type of the memory with date and time stamp
Luminance: 0 - 130.000Lux
UV intensity: 0 - 30mW / cm 2
External sensors
Free Cloud service: TD WebStorage for Data collector
LCD display shows current measurements
PC software: tools and presentation included
Data Logger setup with Data collector Optical
Dimensions: 78 x 55 x 18 mm
Fixed antenna: 60 mm
Battery type: AA x 1
