Subcategories
-

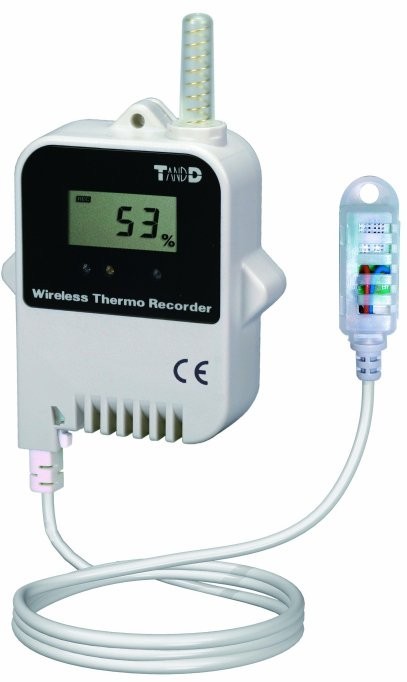

Wireless data logging /...
<p>With these data loggers that can be installed almost anywhere, temperature, humidity and voltage can be logged. The LOG-WL500 series can store up to 16,000 measurements, which can be retrieved wirelessly (range up to 150 meters) via the receiver units (LOG-WL500x) and stored on a PC. The measurements are with date and time stamp - can be exported to eg. Excel. Selected models are approved for food in accordance with EN-12830 standard</p> -

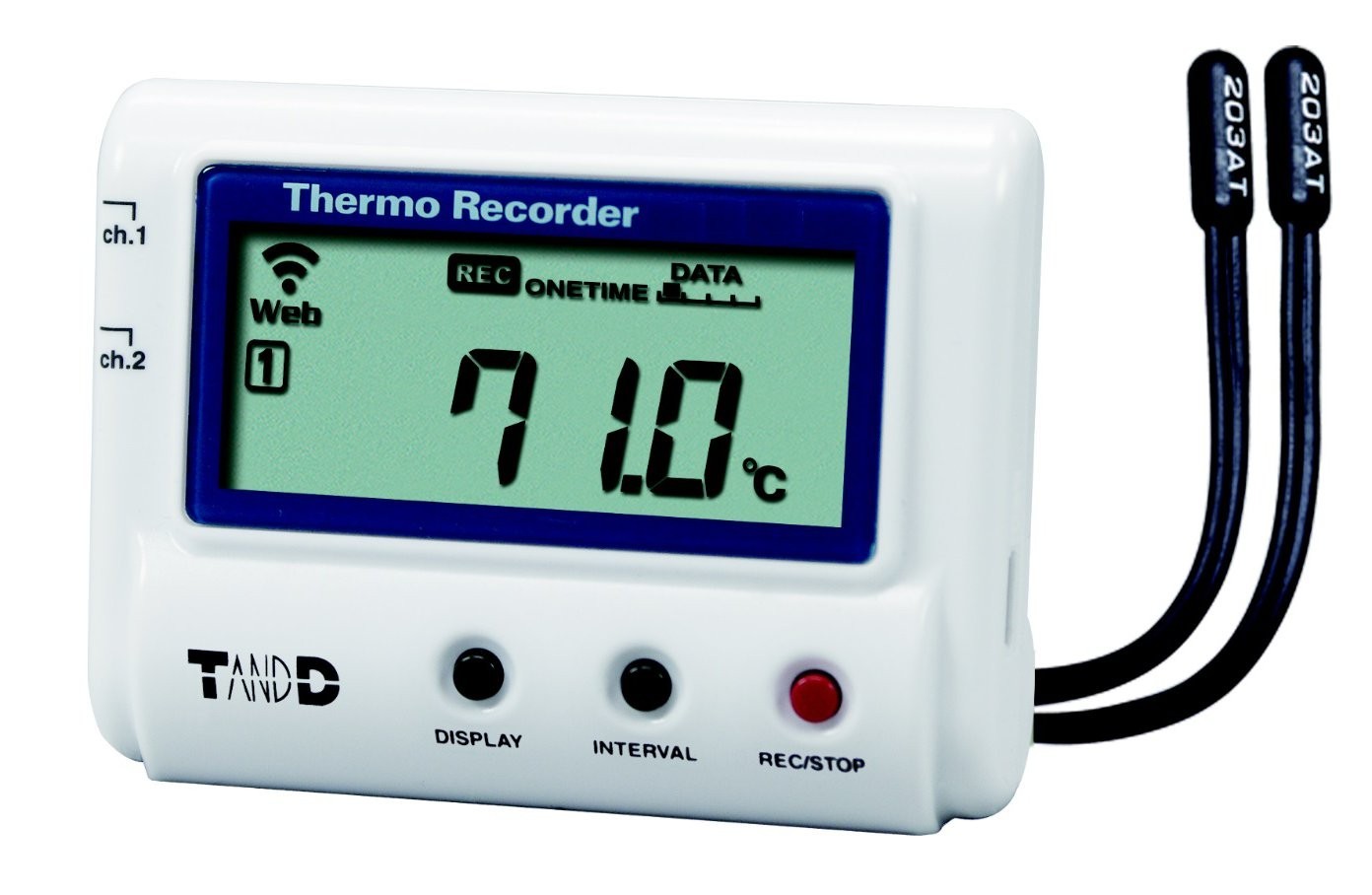

Data Logger LAN / Wifi / BT
<p><strong>Data Logger with Network <!-- strong--> <!-- p--> </strong></p> <p>Temperature and humidity logger where setup is carried out via the built-in Web interface. Changes can be made over the LAN or Internet. The measured values can be retrieved via the supplied software for further processing. Limits can be set up and if they are exceeded please send email to 5 different addresses.<strong> <!-- P--></strong></p> -
Datalogger M-Serien
<p><strong>Temperature, current (0-20mA) and voltage meters with logging</strong></p> <p>Temperature and current and voltage meters, where the measured data is with date and time stamp. Logs without the use of a PC. The logger's parameters scaling, compensation, etc. are set up via the included program - including which intervals to log. After logging in, the device connects to the PC's USB port and data is transferred to the supplied software for graphical display or to be saved as a text or Excel file. Most data loggers are battery powered. Ethernet Servers allow log data to be automatically transferred to the PCs with the DAQ software.</p> -
USB
<p><strong>The temperature, humidity and voltage meters with logging <!-- strong--> <!-- p--> </strong></p> <p>The temperature and humidity and voltage meters in which the measured data with date and time stamp. Logger without a PC. The logger's parameters set up by the program - including the intervals to be logged. After completing the logging device connected PC's USB port, and data is transferred to the supplied software for graphical display or to be saved as a text or Excel file. Some data loggers have built-in display that shows the actual temperature and moisture.<strong> <!-- P--></strong></p> -

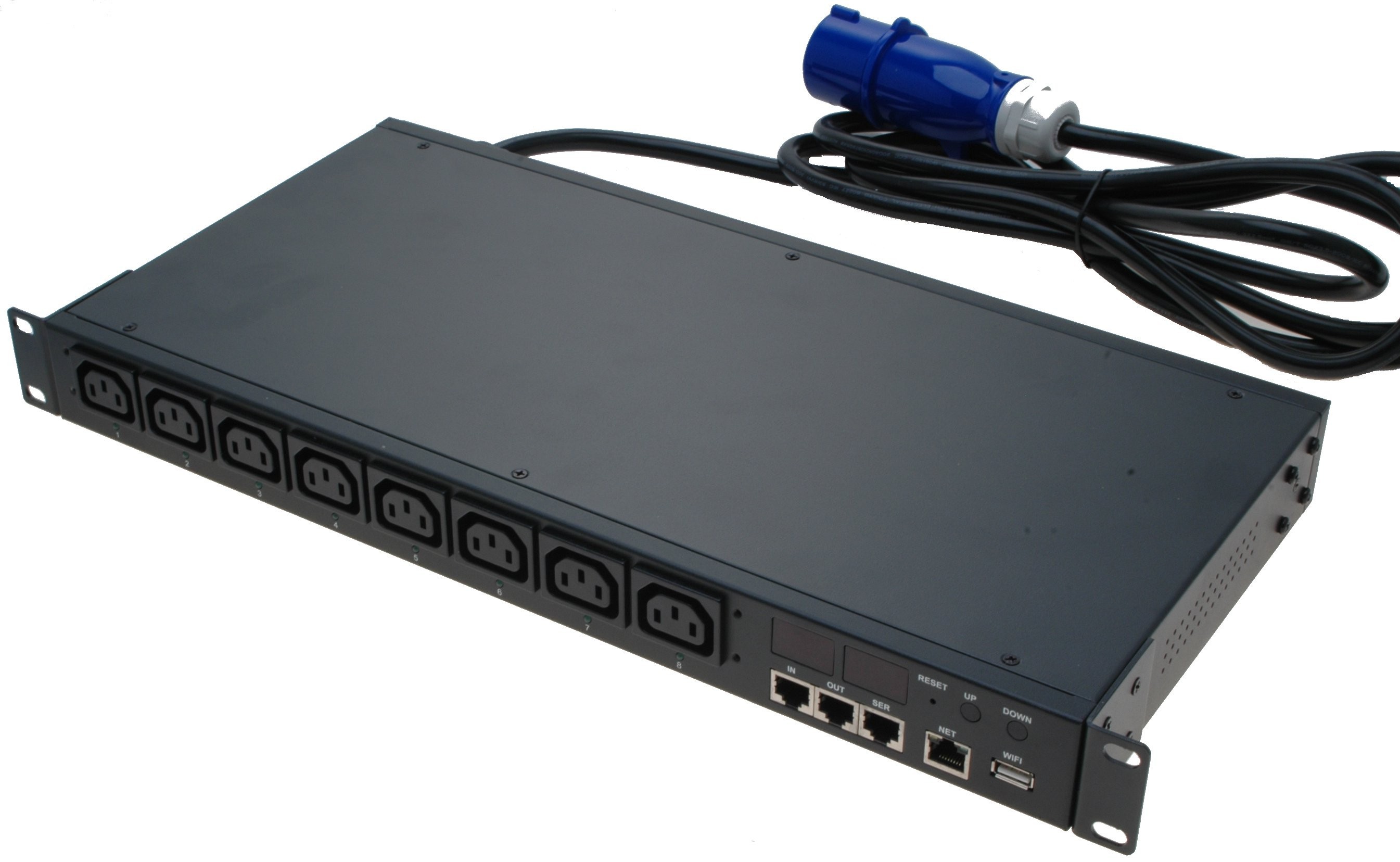

Energy metering
<p>Here are several RMS power meter that takes into account the phase shift that comes with capacitive and inductive loads such. from a motor. Can also be used on plain 230/400 VAC equipment. Software that can display the current consumption and tension. The software may also store the measurements with an adjustable interval. The consumption of the individual phases is read and the total consumption. Good to determine at what stage you should provide to, from a solar plant. Requires knowledge of the MODBUS protocol whose data you want retrieved otherwise. Description of the MODBUS can be found at <a href="http://www.modbus.org/" style="background-color:#ffffff;font-size:14px;">http://www.modbus.org</a><!-- p--></p> -
Accessories
<p>See our range of accessories for data loggers, GSM modules or climate alarms. Here you can find temperature sensors with different interfaces, data logger fittings, or software for displaying data from the measured data. See our selection or contact the sales department for more information.</p> -
T&D Temperatur - / Fugtmåling /...
Energy meter / logger with 8 x 230VAC IEC C13 outlets via the network. KWh per outlet. Unable switches outputs! Rackmount, 1U.
Product code: NPOWER8IEC-E8 x 230VAC IEC C13 outlet with energy measurement in kwh per outlet. Web interface
2 channel temperature logger with LAN interface. 2 x external sensors -40 - + 110 ° C: Clearance
Product code: LOG-L701Residual sale 2 channel temperature logger with external sensor Temperature sensor: -40 - + 140 ° C Freedding temperature: -40 - + 80 ° C 1 x RJ45 Ethernet 1 x Power Jack 3.5 / 1.5 mm 6VDC
4 channel voltage data logger w/Graphic display. +/- 300mV to +/- 24volt. Each channel is isolated. 480,000 in memory
Product code: LOG-MCR4V4 channel data logger with display External memory with SD slot USB port for PC input: DC to 100Hz +/- 0.3 Volt to +/- 24 volts 2ms Log -Interval with 10 Microvolt resolution Log intervals: 2 MS to 60 minutes Number of log intervals: 23 Daisy-Chain 4 x Log-MCR4V Battery operation: 4 days to 130 days, dependent on logging External power supply: Micro-USB adapter (not incl.)
Log data collector wireless loggers. Battery-powered radio-relay station. Setup docking device with USB to PC.
Product code: LOG-WL500MDataopsamler med USB og forstærkerfunktion Kun til T&D Dataloggere
Handheld data collector and programs for wireless T&D data loggers of the LOG-WL5XX series. LCD Graphic Display
Product code: LOG-WL500UMData collector with LCD display USB interface for PC optical communication for units of measurement Short Range radio communication for units of measurement Only for TD data loggers
Base station which transfers LOG-DATA from all Wireless Data loggers in the system. Via Wifi PC or T&D WebStorage Cloud
Product code: LOG-WL500WRadio base station retrieves Log data from loggers base station is a link between loggers and PC base station data from 100 wireless loggers Frequency Band Base Station and Data Logger is 870MHz Up to 150meter - depending on conditions Greater distance with repeaters (radio-relay stations) interface for presentation PC is Wifi USB interface to PC for setup: base station, connection dock for Data Like (Optical) Protocol: SMTP (POP before SMTP-AUTH (login) FTP, SNTP, DHCP, DNS) temperature: -10 - + 60 ° C Dimensions: 102 x 83 x 28 mm Power supply included Only for T&D loggers
3G Base station transfer LOG-DATA from Wireless Data loggers in the system. Transferring to PC or Cloud via 3G mobile network
Product code: LOG-WL500GSMRadio base station retrieves Log data from loggers base station is a link between loggers and PC base station data from 100 wireless loggers Frequency Band Base Station and Data Logger is 870MHz Up to 150meter - depending on conditions Greater distance with repeaters (radio-relay stations) Transfers the log data via GSM 3G GPRS mobile network USB interface to PC for setup: base station, connection dock for data Like (Optical ) Protocol: SMTP (POP before SMTP AUTH (login) FTP, SMS SMTPS (SMTP over SSL) Temperature: -10 - + 55 ° C Dimensions: 96 x 66 x 39 mm | Power supplied only for T&D loggers
1 channel temperature/humid logger 0 - +55°C, 10 - 95% RH. Wireless to collects up to 150m, BT. External sens. Battery operation
Product code: LOG-WL503Wireless Temperature and Humidity Logger with memory Bluetooth to T&D Thermo APP Sending measurement data to Data Collector (Base Station) at 870MHz Distance between Data Logger and Data collector up to 150 meters Battery operation up to 10 months at an upload per day 2 x 8,000 measurements in memory with the date and time stamp Accuracy of measurement: max. + / - 0.3 ° C, +/- 5% RH Removable external sensor. IP64 with O-ring Free Cloud service: TD WebStorage for Data Collector LCD display shows current measurements PC software: tools and presentation included Data Logger setup with Data Collector Optical Dimensions: 62 x 47 x 19 mm Battery type: LS14250 x 1
1 ch temperature logger -60 - +155°C, to wireless data collector up to 150m, external sensor. IP67. battery operation
Product code: LOG-WL502Wireless Temperature Logger with memory Bluetooth APP: T&D Thermo Sending measurement data to Data Collector (Base Station) at 870MHz Distance between Data Logger and Data collector up to 150 meters Battery operation up to 10 months at an upload per day Data Logger is not on-line 16,000 measurements in memory with the date and time stamp Accuracy of measurement: max. + / - 0.5 ° C range depending Removable external sensor. Close O-ring Free Cloud service: TD WebStorage for Data Collector LCD display shows current measurements PC software: tools and presentation included Data Logger setup with Data Collector Optical Dimensions: 62 x 47 x 19 mm Battery type: LS14250 x 1
1 ch pulse counter data logger. Range: 0 - 27V. Wireless to collector up to 150m, Bluetooth. Cable incl. IP64. Battery operation
Product code: LOG-WL505PWireless Pulse Logger with memory Max. number of pulses per measurement interval: 61439 pulses Max. Frequency: 3.5kHz (0.3ms) Sending measurement data to Data Collector (Base Station) at 870MHz Distance between Data Logger and Data collector up to 150 meters Battery operation up to 10 months at an upload per day Data Logger is not on-line 16,000 measurements in memory with the date and time stamp Removable external terminal block. Close O-ring Free Cloud service: TD WebStorage for Data Collector LCD display shows current measurements PC software: tools and presentation included Dimensions: 62 x 47 x 19 mm Fixed antenna: 24 mm Battery type: LS14250 x 1
1 ch 4 - 20mA power logs. Wireless to collectsor up to 150m, external term block. Bluetooth IP64. Battery operation
Product code: LOG-WL505MAWireless Temperature Logger with memory Med Bluetooth. T&D THermo APP Sending measurement data to Data Collector (Base Station) at 870MHz Distance between Data Logger and Data collector up to 150 meters Battery operation up to 10 months at an upload per day 16,000 measurements in memory with the date and time stamp Accuracy of measurement: 0.05mA + 3% at a measuring range from 10 to 40 ° C Removable external terminal block. Close O-ring Free Cloud service: TD WebStorage for Data Collector LCD display shows current measurements PC software: tools and presentation included Data Logger setup with Data Collector Optical Dimensions: 62 x 47 x 19 mm Battery type: LS14250 x 1
