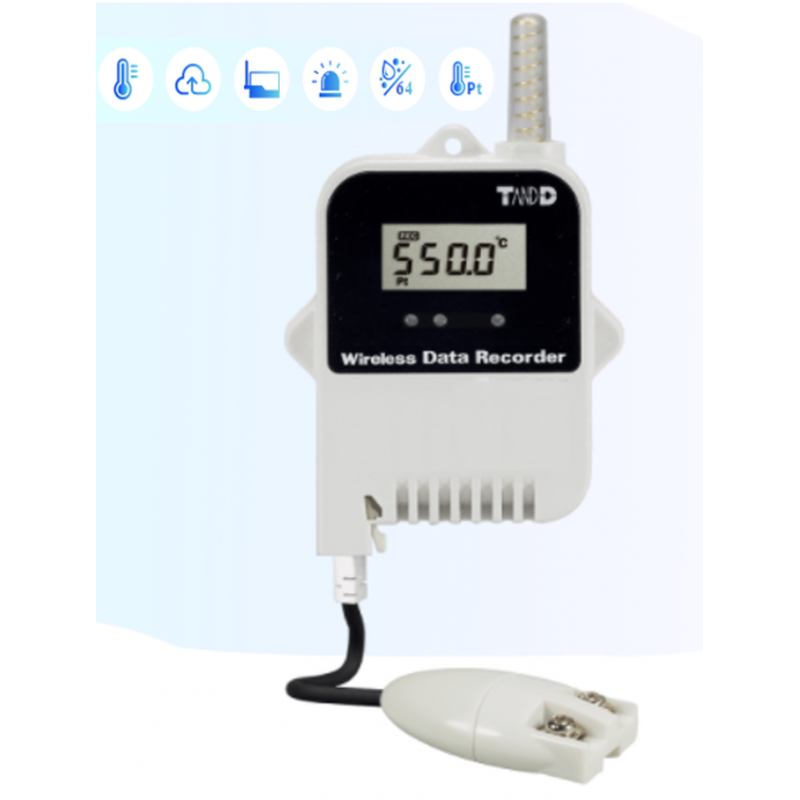

1 ch temperature logger. For Pt100/Pt1000. Wireless data collector for up to 150m, BT. ext. term block. IP64. battery operation

Product code: LOG-WL505PT

Wireless Temperature Logger with memory Kirke Pt1000 and Pt100 3-wire
Bluetooth T&D APP
temperature: -199 - + 600 ° C, +/- 0.3 ° C + 0.3%
Sending measurement data to the data collector (Base Station) at 870MHz
Distance between Data Logger and Data collector up to 150 meters
Battery operation up to 10 months at an upload per day
Data Logger is not on-line
16,000 readings in memory with date and time stamp
Removable external terminal block. Close O-ring
Free Cloud service: TD WebStorage for Data Collector
LCD display shows current measurements
PC software: tools and presentation included
Data Logger setup with Data Collector Optical
Dimensions: 62 x 47 x 19 mm
Battery type: LS14250 x 1

  • Add to Comparison Remove from Comparison
    • 1,896.00 DKK
    Tax excluded
    On the way in
    Quantity

    LOG WL505PT series allows you to mix and match a variety of wireless radio communications Loggers with various base units or data collectors to meet your needs. Logged data can be automatically sent via network or mobile communications to be stored in the cloud storage or to a specific location.

    LOG WL505PT series allows you to mix and match a variety of wireless radio communications Loggers with various base units or data collectors to meet your needs. Logged data can be automatically sent via network or mobile communications to be stored in the cloud storage or to a specific location.

    LOG WL505PT is designed for use with Pt sensors and measuring in the wide temperature range from -199 ℃ to 600 ℃ with superior accuracy.
    lOG WL505PT loggers have a wireless radio communications space of compatible base units of up to 150m (492ft).

    Data can be transferred from a logger to a base unit and then automatically uploaded to Cloud storage, or stored at a particular location. Data can also be checked on your PC monitor or on site with one of our compatible data collectors.

    When LOG WL505PT is able to measure a wide range of temperatures with high accuracy, is the perfect for situations where you want to control various metrics at once, for example. When you register temperature in research using freezers test at high temperature and low temperature test.

    LOG-WL505PT

    Data sheet

    Opløsning
    0.1 °C
    Kabel
    90cm
    Nøjagtighed
    ±( 0.3 °C+0.3 % of reading) at 10 to 40 °C ±( 0.5 °C+0.3 % of reading) at -40 to 10 °C, 40 to 80 °C
    Måleområde
    Til ekstern PT 100 eller 1000 føler 3 tråds - 199 – 600 °C
    Dimensioner
    62 mm (H)
