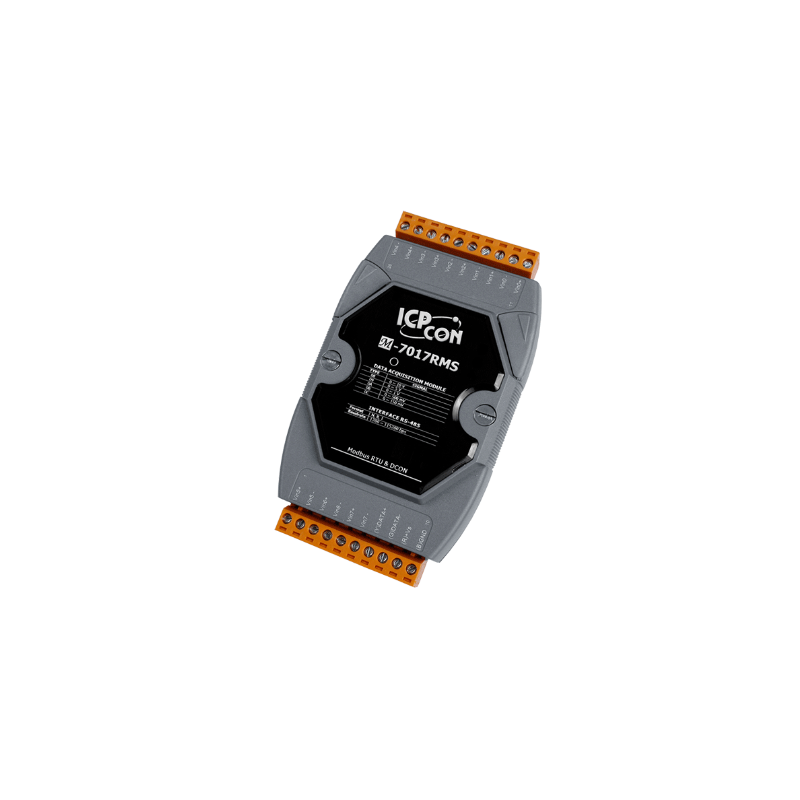

8-channel True RMS Input module for Modbus RTU/DCON RS485. 45Hz to 10kHz. 0 - 150mVrms. 10 - 30VDC
Product code: MOD485-IO8AI-RMS
8-channel differential AC input module used to convert the AC input signals to their True RMS DC values. The RMS input range can be from +150 mVrms to +10 Vrms and each channel can be configured individually. The module is a complete high-accuracy RMS-to-DC converter that calculates the true RMS DC value for any complex waveform. It also features 4 kV ESD protection, 2500 VDC intra-module isolation and +/-35 VDC surge protection.
MOD485-IO8AI-RMS
1 Item
8-channel True RMS Input
±0.15% factory calibrated accuracy
The RMS input range can be from +150 mVrms to +10 Vrms
Designed for standard operation with frequencies of 45 Hz to 10 KHz
Channels can be individually configured
