2 x Analog to Load Cell, +/- 2.5V, 0-20mA, 1 x Excitation like cell, 2x digital zoom, 2 x Digital Output (OC). LAN with PoE
Product code: ETHIO3I4O-P-I

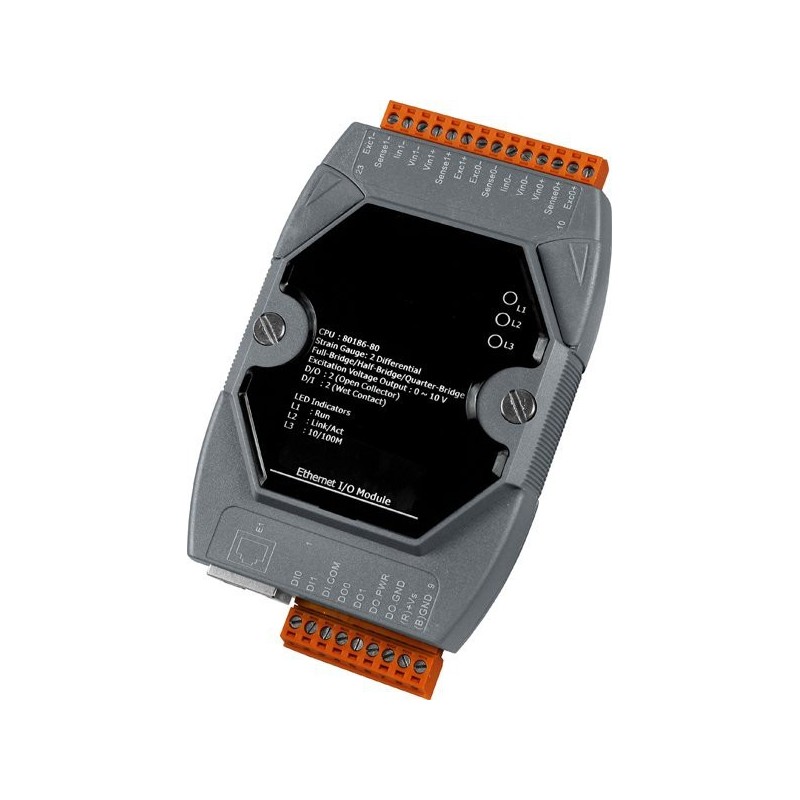

ETHIO3IAO-P-I is a strain gauge sensor module with two analog input channels, one excitation-voltage output, digital input channel 2 and channel 2 digital output module. It provides various programmable analog input inputs (+/- 1 mV, 50 mV +/-, +/- 100 mV, 500 mV +/-, +/- 1 V and +/- 2.5 V) and supports the full bridge, half-bridge and kvartbro. The area of each analog input can be individually configured. Excitationsspændingsoutput may be in the range of 0 ~ 10 V with a 60 mA driving efficiency. Digital outputs can also be set as the alarm outputs. ETHIO3IAO-I-P may also provide measurement of the long distance line gauge which compensates for the voltage drop due to the measurements over a long distance.
ETHIO3I4O-P-I
Data sheet
- Forsyning
- 10 - 30 VDC, 5,3 W via klemrække eller PoE
- Netværk
- 10/100 Mbit m/RJ45-stik
- Software
- Leveres med konfigureringssoftware til Windows 2000, XP, Vista, WIN7/8/10
- Protokol
- Modbus/TCP, TCP/IP og UDP
- Tæller
- Digitale Indgange kan virke som 32 bit tæller, maks. frekvens 100 Hz
- Indgang
- 2 stk. analoge differentialindgange: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2,5 mV, 0 - 20mA, 4 – 20mA og ±20 mA
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 to +75°C
I/O pair connection mirrors input to second output
2 x AI to load cell
1 x load cell excitation voltage out
2 x Digital out with counter
2 x Digital out (Open Collector)
Supply voltage: 10 - 30VDC / 3watt
