6 x Analog Differential input voltage and to mA. 2 x Analog output voltage and mA, 2 x Dig in 2 x Dig out, 1 x RJ45, 10-30VDC
Product code: ETHIO8I4O-I

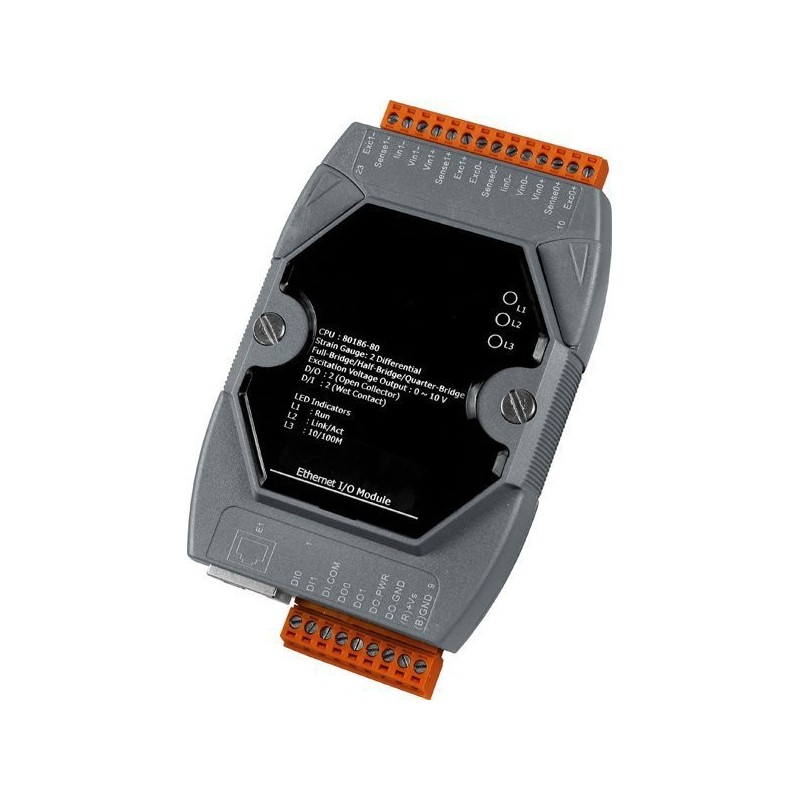

ETHIO8I4O-I is a multifunctional module with 6-channel analog inputs, 2-channel analog outputs 2-channel digital inputs and 2-channel digital outputs. It provides various programmable analog inputs (+/- 500 mV, +/- 1 V, +/- 5V, +/- 10V, +/- 20 mA, 0 ~ 20 ~ 4 mA and 20 mA) and analog outputs (+/- 5V, +/- 10 V, 0 ~ 20 ~ 4 mA and 20 mA). Each analog input has allowed to set up a proper range of 240 Vrms with high voltage protection. Each analog input / output can be programmed to accept the current or voltage as an input / output depending on the location of the corresponding jumper.
ETHIO8I4O-I
2 Items
Data sheet
- Udgange
- 2 analoge udgange: 0 – 5 V, 0 – 10V, ±5 V, ±10 V 0 - 20 mA, 4 - 20 mA. Opløsning 12 bit, nøjagtighed maks. ±0.05 %.
- Opløsning
- 16 bit
- Netværk
- 10/100 Mbit m/RJ45-stik
- Nøjagtighed
- Mindst ±0.1 %
- Maks. hastighed
- 10 samples/sekund
- Indgangsimpedans
- Analog indgange 2 MΩ
- Protokol
- Modbus/TCP, TCP/IP og UDP
- Tæller
- Digitale Indgange kan virke som 32 bit tæller, maks. frekvens 100 Hz
- Indgang
- 6 analoge differentialindgange: ±500 mV, ±1 V, ±5 V, ±10 V, 0 - 20 mA, 4 - 20 mA, ± 20 mA
Built-in Web server
Web HMI
Modbus / TCP and Modbus / UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair-link - the input is mirrored in the other's output
6 x Analog inputs: 500mV +/- - +/- 10 V, 0 - 20mA (16bit)
2 x Analog outputs: 0 - +/- 10VDC, 0 - 20mA (12bit)
10 samples per second
2 x Digital input (count): Wet / Dry, max. + 30VDC (100Hz)
2 x Digital outputs: Open Collector, max. 50VDC / 700mA
1 x RJ45 Ethernet
Supply voltage: 10 - 30VDC / 4Watt
