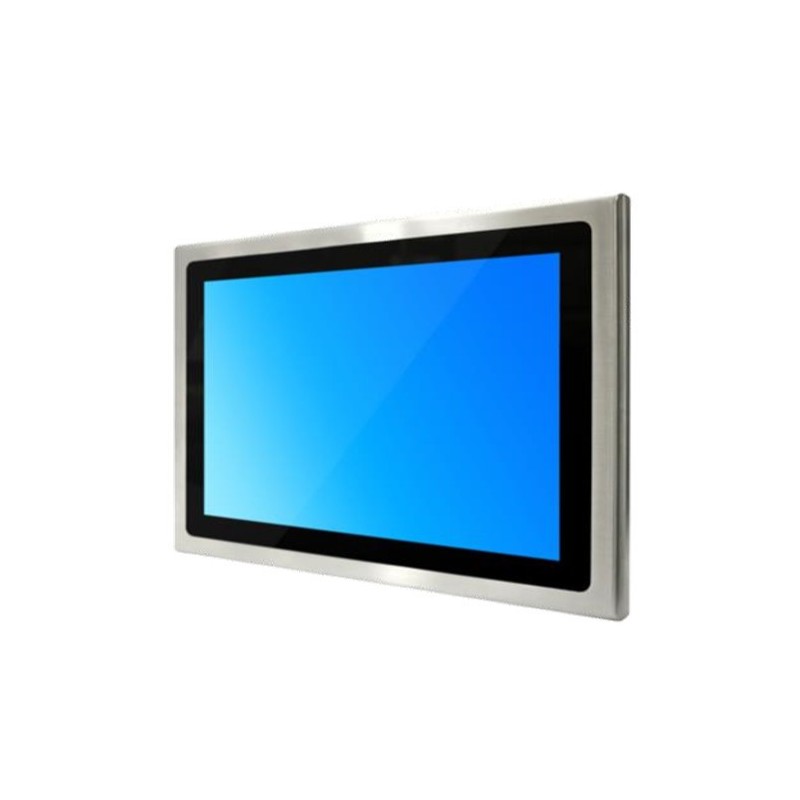

10,1 "LCD-skärm, VGA och HDMI, Full IP66 / IP69K, vandalskydd, PCAP multi touch
Product code: MON10.1"-IP69K
10,1 "vattentät och vandalfast rostfritt stålskärm, Full IP66 / IP69K
MON10.1"-IP69K
Datablad
- Forsyning
- 1 x AC/DC Power adapter, 9~36V DC or 100~240V AC Power Input (optional)
- Opløsning
- 1280 x 800 @ 60Hz, 75Hz
- Driftstemperatur
- 0 - +50C°
- Tilbehør
- Power Cord : 1 x 1.5m power cord
- Interface
- x VGA (M12 connector) 1 x HDMI (IP66 HDMI connector) U1 x USB for touch (M12 connector) Power Input :1 x 12V DC input (M12 connector)
- Lysstyrke
- 350 nits (cd/m2)
- Strømforbrug
- 15W typical, normal operation
- Montering
- 75x 75 VESA Mount. Panel mount for optional
- IP-Tæthed
- Full-IP66/IP69K
- Type
- 10.1” LCD
- Skærm
- 6-10 mm vandal proof touch screen (optional)
- OSD
- 5-key OSD buttons • OSD Function : Contrast, Color, Position, Auto-adjustment, Factory Settings
- Pixels
- Pixel Pitch (mm) : 0.2125(H) x 0.21525(V)
- Dimensioner
- 220 x 300 mm (H x B)
- Materiale
- Stainless Steel
- Antal farver
- 16.7M Colors
- Touch
- P-cap multi-touch (USB)
- Kontrast
- 800 : 1 (typ.)
10,1 "LCD-skärm
1 x VGA
1 x HDMI
1 x USB (touch)
PCAP multitouch (USB)
Upplösning: 1280 x 800 @ 60Hz, 75Hz
Ljusstyrka: 350 nitar (cd / m2)
OSD-funktion
Kontrast: 800: 1
Full IP66 / 69K och vandal proof
Driftstemperatur. 0 - +50 C °
Tillförsel 9-36VDC, 15W
För VESA75 eller panelmontering
220 x 300 mm (H x B)
