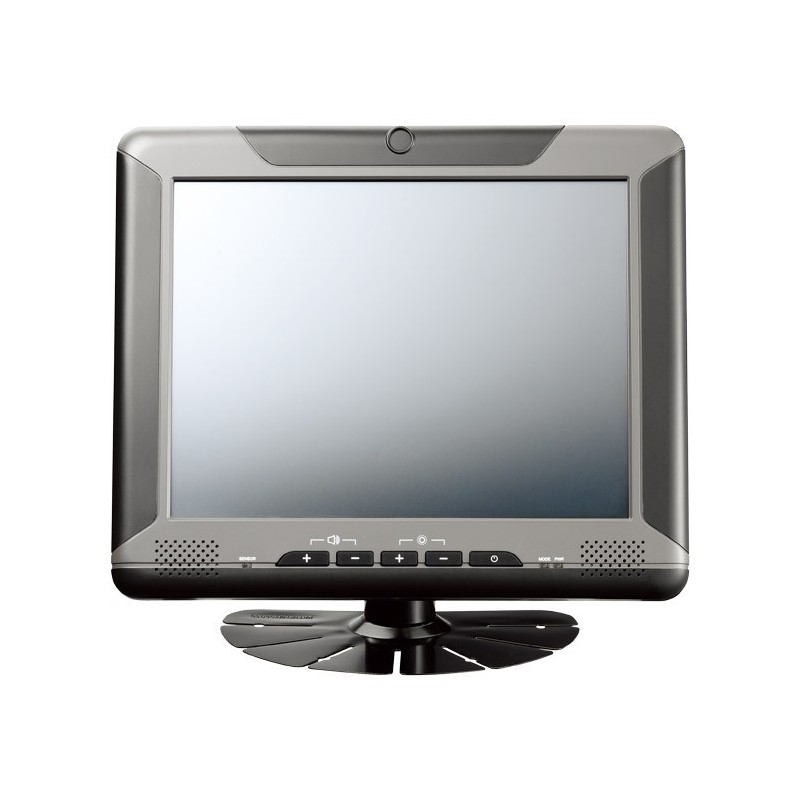

8-tums LCD-skärm, beröring med LED-bakljus, IP55 nära framsida, 800nits, läsbara i solljus, -20°C till +60°C, 4:3-format
Product code: MON8-TFT-S
MON8-TFT-S
1 Produkt
Datablad
- Weight
- 0.7Kg
- Driftstemperatur
- -20°C to 60°
- Interface
- Lateral: 1 x SD/MMC/MS card reader, 1 x USB type A Host, 1 x Line-out 1 x Mic-in Interface Bottom: 1 x Mic-out, 1 x Line-in, 1 x DVI-D Connector (integrating VGA, USB x 1 and 12VDC x 1)
- Montering
- VESA 75, panel and wall mounting
- IP-Tæthed
- Front panel IP55
- Skærm
- 8" SVGA TFT LCD Monitor
- Lysfølsomhed
- Sunlight-Readable Display with High Brightness LCD (800 cd/m2 )
- Dimensioner
- 207mm (W) x 173mm (H) x 36.7mm (D)
- Materiale
- Enclosure: Plastic PC + ABS
- Chok/Vibration
- Vibration (random): 2.5g@5 ~ 500 Hz Vibration Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4, Ground Vehicle – Highway Truck Storage: MIL-STD-810G, 514.6 Procedure 1, Category 4, Integrity Test Shock
- Touch
- 4-wire resistant touch Anti-glare coating surface Transmission rate: 82 ± 3%
- Kontrast
- Contrast ratio: 500 : 1 (typical)
- Övrig
- 2 x Built-in speakers (1.2W)
8" TFT LCD-skärm, lämplig för fordon
Resistive Touch (USB)
LED-bakgrundsbelysning
800 x 600 pixlar (SVGA)
Ljusstyrka: 800 cd/m² (800nits)
Läsbar i solljus
Kontrast 500: 1
1 x SD / MMC / MS-kortläsare, 1 x USB A, 1 x Mikrofon
I DVI-anslutning (VGA, 1 x USB och 1 x 12VDC)
Tillförsel 9-36VDC, 15W
Driftstemperatur -20 till 60°C
IP55 Front
VESA 75, Panel Power. väggmontering
Mått: 207mm x 173mm x 36.7mm (B x H x D)
