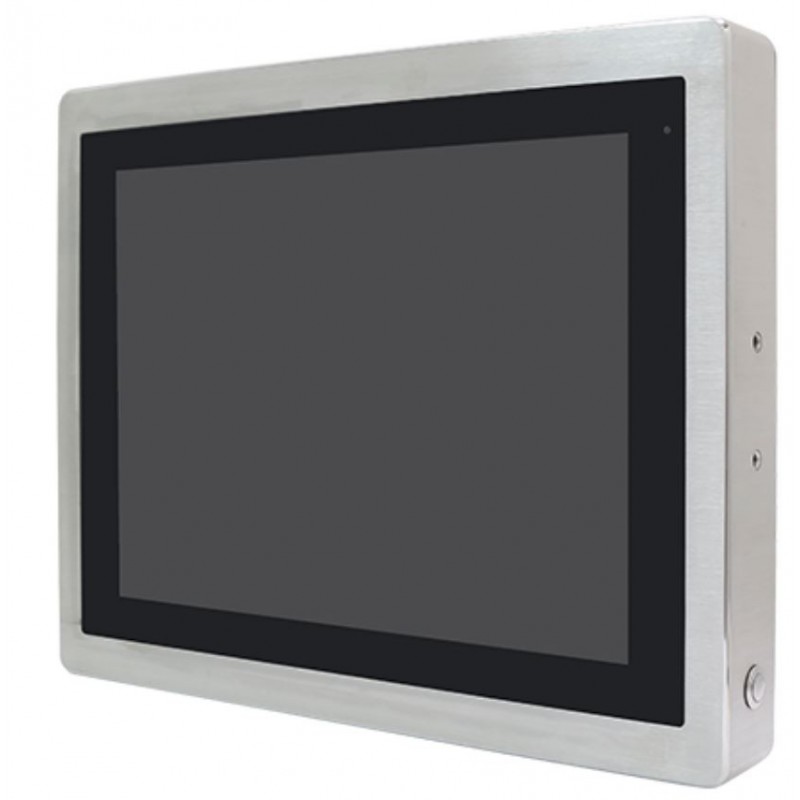

19 "SXGA IP66 / IP69K Stainless Steel Panel PC i3-6100U CPU 32G MLC SSD, Projicerad Touch
Product code: IPP19I3
Panel PC inbyggd i rostfritt stålskåp. Lämplig för bla. Mat och medicin Insulin.
Hygienvänlig design, lätt att rengöra.
IPP19I3
Datablad
- Weight
- 9.5Kg
- Kompositioner
- Construction 304 Stainless steel chassis(default), 316 Stainless steel chassis(optional)
- Opløsning
- Max. resolution 1280 x 1024
- Driftstemperatur
- 0~50°C
- Porte
- Serial 1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain
- Strømforbrug
- 30W
- Hukommelse
- 1 x SO-DIMM DDR4 max. 16GB RAM (no RAM installed)
- IP-Tæthed
- IP rating IP66 / IP69K
- Temperatur
- -30~70°C
- Luftfugtighed
- 10 to 90% @ 40°C, non- condensing
- Ethernet
- 10/100/1000MBit LAN 1 x M12 8-pin for LAN with waterproof cover and chain
- USB
- USB 1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain
- Strømforsyning
- DC 9~36V Power 1 x M12 3-pin for DC power with waterproof cover and chain
- Dimensioner
- 470 x 388.6 x 60 mm
- Touch
- Standard Projected Capacitiv Touch Light transmission 80%, (Oprion; resistiv, protection glass)
- Storage
- HDD/SSD 1 x 2.5" SATA3 HDD
- Approval
- Certification CE / FCC CLASS A
- Msata
- 1 x Msata onboard
- mPCIe
- Expansion slot 1 x MiniPCIe slot for WIFI/BT(optional), 4G/LTE(optional)
17" TFT-LCD 1280x1024
Projektiv Kapacitiv Touch.
Intel Celeron N2930 1.83GHz
True Flat Front Bezel och Grade 304 Stainless Steel Enclosure (Grade 316 för Tillval).
IP66 / IP69K Rated med M12-kontakter.
Tryck på på / av-knappen på sidokanten för hygienisk rengöring.
