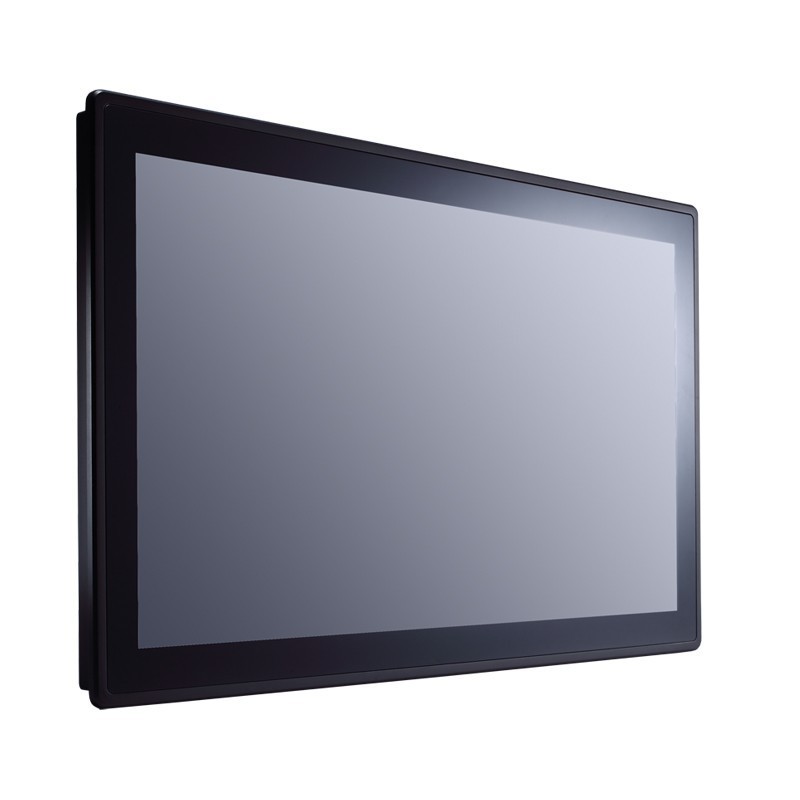

18.5 Wide screen panel pc barbone, 4.tillh Gen. Intel i7/i5/i3 & Celeron (haswell)

Product code: PPC18.5IB

18.5-inch WXGA
Fanless
Projected capacitive multi-touch screen
4th. gen intel i7/i5/i3
2xRJ45
4xUSB
2xCom
IP65 front
Dual PCI express minislot

  • Lägg till jämförelse Ta bort från jämförelse

    • Ring för pris
    0,00 DKK
    Exkl. moms
    På vägen in
    Kvantitet

    Build To Order panel PC
    Kontakt salg vedr. komplet løsning med CPU, RAM og OS.

    PPC18.5IB

    Datablad

    CPU
    LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (Tj 100°C, TDP 35W)
    Forsyning
    +12V/+19V/+24VDC 1 x Terminal block
    Udgange
    1 x HDMI 1 x DP 1 x VGA
    Driftstemperatur
    0°C to +50°C (+32°F to +122°F)
    Porte
    1 x 9-pin D-sub Male for RS-232 1 x COM for RS-232/422/485
    Chipset
    Intel® H310
    OS SUPPORT
    Windows® 10 IoT Enterprise, Windows® 10
    Effekt
    120W
    Hukommelse
    1 x 260-pin DDR4-2666/2400 SO-DIMM, up to 32GB
    Montering
    OPTION NEED TO BE ORDERED Panel mount VESA mount Wall mount
    IP-Tæthed
    IP65 front bezel
    Skærm
    18.5" FHD TFT
    Ethernet
    2 x 10/100/1000Mbps
    USB
    2 x USB 3.0 2 x USB 2.0
    Mål og vægt
    weight (net/gross) 7.8kg (17.2lb)/10.2kg (22.5lb)
    Dimensioner
    460.8 x 77 x 285 mm (18.11" x 3.04" x 11.22")
    Billede
    1920 x 1080 pixels
    Touch
    Projected capacitive multi-touch 5-wire resistive touch
    mPCIe
    1 x Full-size PCI-Express Mini Card slot (PCIe + SATA + USB)
    TPM
    TPM 2.0
    M.2
    1 x M.2 Key E 2230 (for Wi-Fi)
    Nits
    LCD 500 nits
