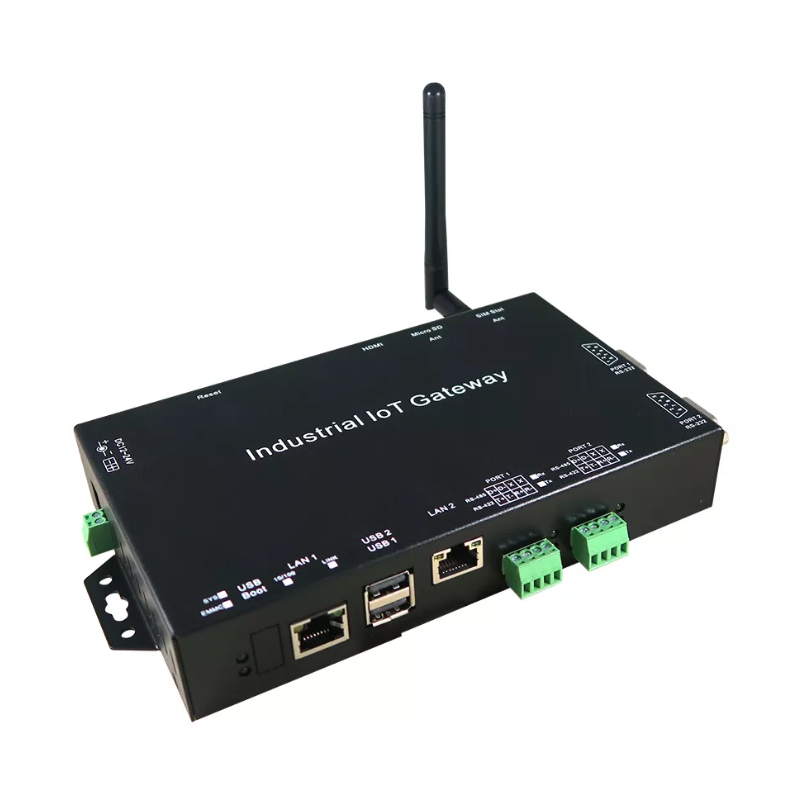

Programmerbar Industrial IoT Controller med 1 digital ingång och 1 digital utgång, 2 COM-portar
Product code: RPI-CM4-IOT
• Wireless Bluetooth 5.0 BLE (optional)
• 5G M.2 key B USB 3.0 / PCI-E for 5G (optional)
• 4G Mini-PCIe : USB 2.0 for 4G / NB-IoT / LoRa (optional)
• M.2 key M for PCIe SSD (optional)
• Fan - DC 12V (optional)
• Wifi 802.11b / g / n / ac (2.4/5GHz) (optional)
RPI-CM4-IOT
Datablad
- CPU
- Broadcom BCM2711 QuadCore Cortex A72 (ARM v8) 64 bits SoC @ 1.5G
- Driftstemperatur
- -20℃〜75℃
- Netværk
- 10/100/1000 Mbps Giga Lan * 1 (RJ45); 10/100Mbps * 1 (RJ45)
- OS SUPPORT
- Linux OS
- USB
- USB 3.0 * 2
- Strømforsyning
- DC 9~32V, 1000mA@12V (DC Jack or Terminal Input)
- Digital I/O
- Digital Input * 1 Pin (Active High / Active Low Selectable); Digital Output * 1 Pin (Active High / Active Low Selectable)
- Dimensioner
- 170 * 110 * 30 mm
- Video
- Micro HDMI * 1 (4Kp60fps with audio)
- SSD
- 32GB EMMC Flash
- Serial Porte
- Port 1: RS-232/422/485 * 1; Port 2: RS-232/485 * 1
- RAM
- 4GB LPDDR4 Standard
CPU QuadCore Cortex A72 (ARM v8) 64 bitars SoC 1,5 GHz
RAM 4GB LPDDR4 standard (1/2/8 option)
32GB EMMC Flash-minne
1x Micro HDMI
2x USB 3.0, 2x COM (1x RS-232/422/485, 1x RS-232/485 )
RTC : Realtidsklocka
1x D igital ingång Dry(open/close)/Wet(0-3V/10-30V) kontakt
1x digital utgång ( 120VAC @0,5A, 240VAC @0,25A, 30VDC @1A)
DC 9~32V ingång DC Jack eller terminalingång
