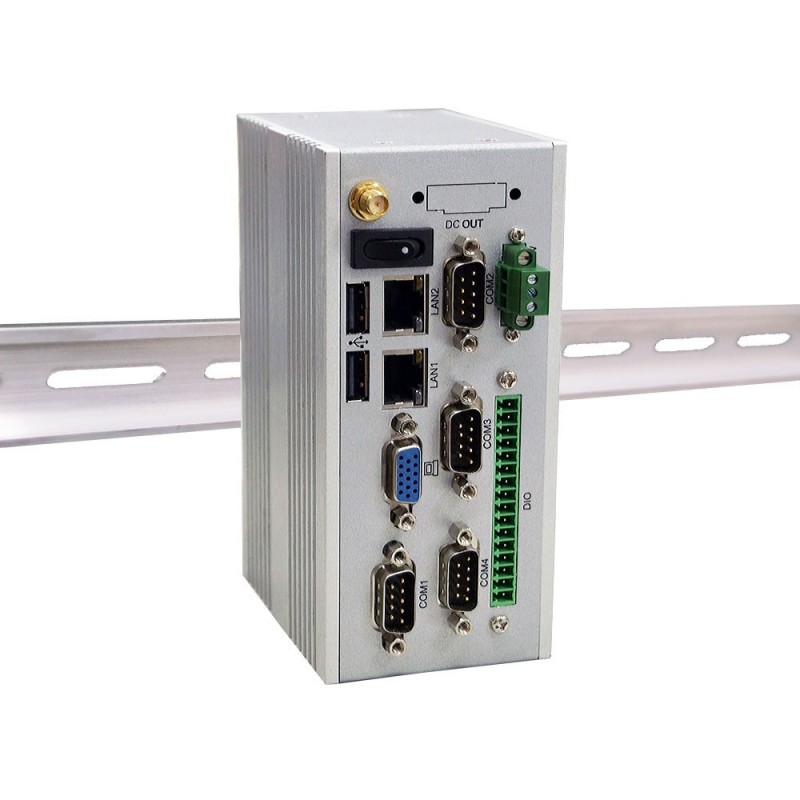

Embedded dator BT 4x RS232/485, 2 GB minne, Bred temperatur -20 ° C ~ 70 ° C Alternativ (3/4G, Wifi, GPS, BT)
Product code: EPC-BT-DIN
Embedded Baitrail PC, kan levereras med OS, SSD/HDD installerat redo för användning.
Andra modeller med mindre eller kraftfullare CPU finns tillgängliga. Kontakt försäljning avseende modeller och lösningar.
EPC-BT-DIN
Datablad
- Weight
- 0.75kg
- Kompositioner
- Aluminium
- CPU
- Intel Bay Trail-I E3825 1.91 GHz (DUAL Core)
- Udgange
- VGA DB15HDM Female
- Driftstemperatur
- -20°C ~ 70°C, mSATA 70°C / 2.5" HDD 60°C
- Porte
- 4 X RS232/485 (1 have option for RS232/422/485)
- Chipset
- Intel BAY Trail-I E3825
- BIOS
- Insyde UEFI BIOS
- Watchdog
- Hardware Watch Dog Timer, 0~255 sec programmable
- OS SUPPORT
- WIn 7 (32/64bit) Win 8.1 (32/64bit), win10 (64 bit),Ubuntu 14.04, Fedora 19, Fedora 20, Rad hat enterprise linux 7
- SATA
- 1 x SATA ports 2.0 Data transfer rates up to 3.0 Gb/s (300 MB/s) (Share with Full Size mSATA) 2 x mini card socket for mSATA
- Hukommelse
- 2GB Onboard 1066MHz
- Lyd
- High Definition Audio Specification, Support Line-out / Mic-in. Amplifier Is option
- Ethernet
- 2 x Intel 10 / 100 / 1000 Mbps
- USB
- 4 x USB 2.0 (2 x external + 2 x internal)
- Dimensioner
- 64H x 140W x 92D mm
- Grafik
- Intel's 7th generation (Gen 7) graphics and media encode / decode engine, Supports DX*11, OpenGL 3.0 (OGL 3.0), OpenCL 1.2 (OCL 1.2), OpenGLES 2.0
- Storage
- Space for mSATA/2.5" HDD/SSD
Embedded Intel® Bay Trail-I E3825 CPU 1.91GHz
2GB DDR3L 1022MHz
VGA
Audio
4 x COM
2 x Intel GbE LAN
4 x USB 2.0 (2 internt, 2 externt)
2 x Mini PCIe + 9V ~ + 36V
DIN-skenafäste
OS-stöd: WIN 7 (32bit / 64bit) / 8.1 (32 / 64bit) / 10 (64bit)
Linus support: Ubuntu 14.04, Fedora 19, Fedora 20, Rad hat Enterprise Linux 7
