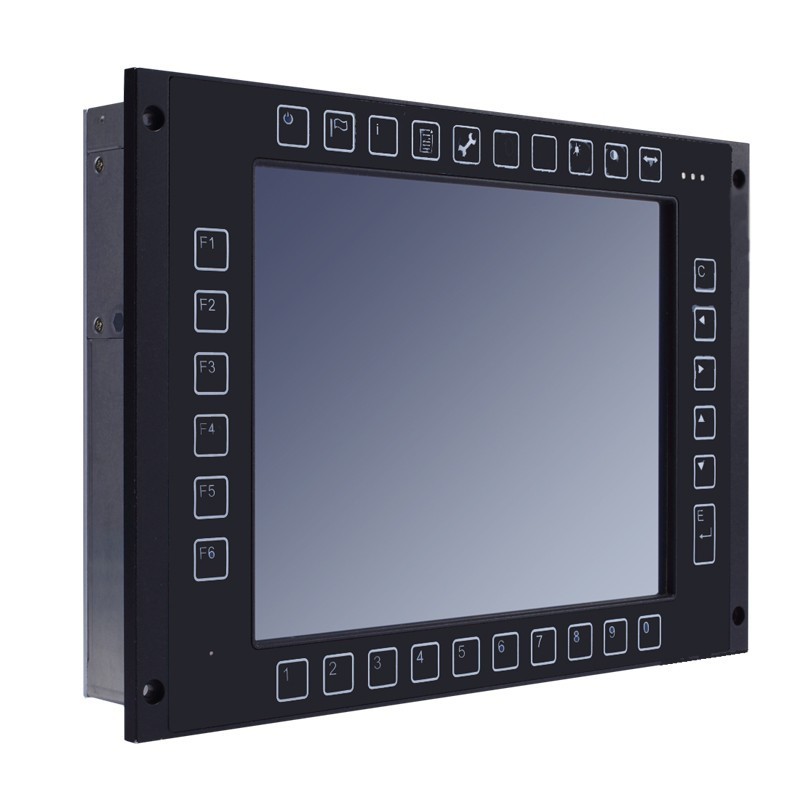

10.4" Panel PC godkänd till användning i tåg, (EN 50155 for railway)

Product code: IPP10.4EN50155

Sunlight readable 10.4"
1000 Nits
Auto-dimming
-25°C to +70°C
EN 50155 certified for railway

Ring för pris

0,00 DKK
Exkl. moms
På vägen in
Kvantitet

Panel PC speciellt konstruerade för användning i tåg.

Har EN50155 certificering.

Vi har möjlighet att erbjuda andra storleker och lösningar som kräver särskilda tillstånd

IPP10.4EN50155

Datablad

Weight
2.4 kg (5.29 lb) / 5 kg (11.02 lb)
Forsyning
16.8V to 30V DC or 77V to 137.5 VDC 10ms hold up time (S2) Power Comsumpt
Driftstemperatur
-25°C ~ +70°C (-13°F ~ +158°F)
Porte
2 x isolated RS-232/422/485 (M12, A-coded)
Chipset
SoC Integrated
Watchdog
255 levels, 1 ~ 255 sec.
OS SUPPORT
Windows® 10, Windows® 8/8.1, WES 8, Windows® 7, WES 7
Hukommelse
DDR3 4 GB (default) or 8 GB memory onboard
Lyd
Line out/Line in/speaker out
Montering
Suspension mount VESA mount
IP-Tæthed
Front Bezel IP65, NEMA 4 rugged protection, aluminum front bezel
Skærm
10.4" SVGA TFT LCD 1000 nits 800 x 600 pixels
Ethernet
2 x isolated 10/100/1000Mbps (M12, X-coded)
USB
2 x USB 2.0 (M12, A-coded)
Dimensioner
310 x 65.05 x 216 mm (12.20" x 2.56" x 8.50")
Touch
5-wire resistive touch panel
Udvidelser
2 x PCI Express Mini Card
Storage
16GB flash onboard
Approval
EN 50155, EN 50121-3-2 EMC, EN 61373 (Shock/Vibration), EN 45545 (fire) certified Compliance with UIC 612-01 (keypad)
Msata
1 x mSATA
Övrig
1 x isolated CAN bus 1 x isolated DIO (6-IN/2OUT) (phoenix type) 1 x isolated DC for power input (M12, A-coded)
