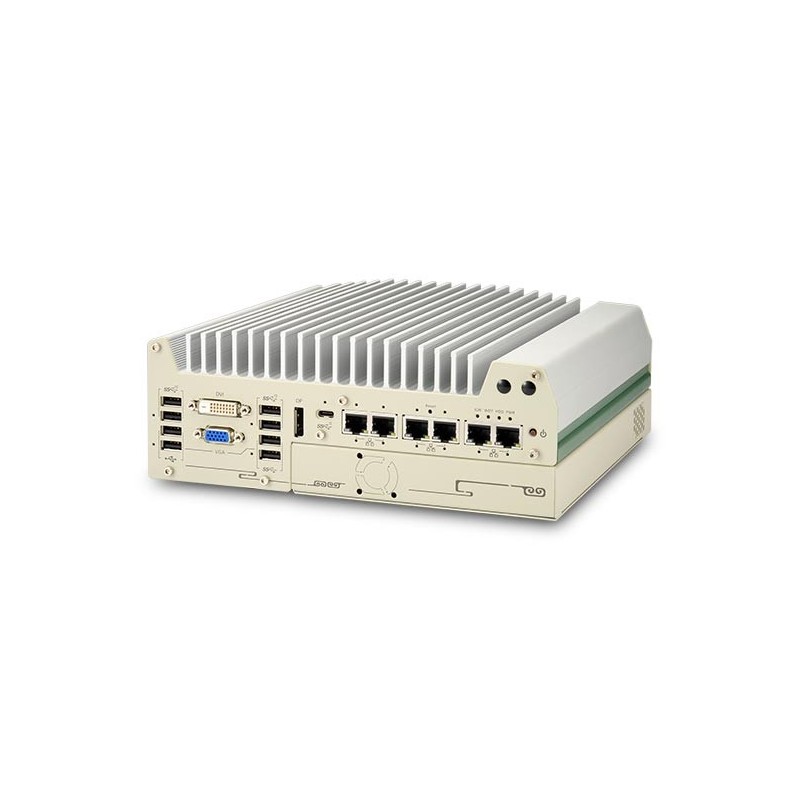

Product title

Product code: EPC-I12X2E8U4SVDD

Stöder Intel® 12:e generationens Alder Lake Core™ 16C/ 24T 35W/ 65W CPU
Patenterad kassett för PCI/PCIe-tilläggskort
Robust, -25°C till 70°C fläktlös drift
Upp till 5x 2,5 GbE och 1x GigE-portar med valfri PoE+, som stöder 9,5 KB jumboram
1x USB 3.2 Gen2x2 typ-C och 6x USB 3.2 Gen2x1 typ-A-portar
Stöder M.2 Gen4x4 NVMe och 2x SATA-portar
Expansionsgränssnitt för enkel funktionsexpansion
VGA/DVI/DP trippeloberoende skärm, stöder 4K2K-upplösning
Många versioner, kontakta vår försäljningsavdelning

  • Lägg till jämförelse Ta bort från jämförelse

    • Ring för pris
    0,00 DKK
    Exkl. moms
    På vägen in
    Kvantitet

    EPC-I12X2E8U4SVDD

    Datablad

    CPU
    Supporting Intel® 12th-Gen Alder Lake Core™ CPU (LGA1700 socket, 35W/ 65W TDP) i9-12900E/ i9-12900TE i7-12700E/ i7-12700TE i3-12100E/ i3-12100TE Pentium® G7400E/ G7400TE Celeron® G6900E/ G6900TE
    Forsyning
    1x 3-pin pluggable terminal block for 8 to 48V DC input 1x 3-pin pluggable terminal block for remote control and PWR LED output
    Udgange
    1x VGA, supporting 1920 x 1200 resolution 1x DVI-D, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution
    Porte
    2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4)
    Chipset
    Intel® Q670E platform controller hub
    PoE
    Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget
    Hukommelse
    Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots)
    Lyd
    1x 3.5 mm jack for mic-in and speaker-out
    Ethernet
    There is more versions!1x 2.5G Ethernet by I225 and 1x Gigabit Ethernet by I219 with screw-lock OPTION:2.5G Ethernet by I225 and 1x Gigabit Ethernet by I219 with screw-lock
    USB
    1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screw-lock 4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors 2x USB 3.2 Gen 1x1 (5 Gbps) ports in type-A connectors 2x USB 2.0 ports
    Dimensioner
    2 sizes contact sales 240 mm (W) x 225 mm (D) x 90 mm (H) (Singel slot solution E/ P series) 240 mm (W) x 225 mm (D) x 110.5 mm (H) DUAL slot solution
    PCI
    Needs to be ordered 1x PCI slot in Cassette
    Grafik
    Integrated Intel® UHD Graphics 770 (32EU)
    Udvidelser
    1x expansion port for speciel IO modules
    mPCIe
    1x full-size mini PCI Express socket
    TPM
    Supports dTPM 2.0
    M.2
    1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD, 1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/ 4G module
    SSD
    2x internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1
    AMT
    Supports Intel vPro/ AMT 16.0
