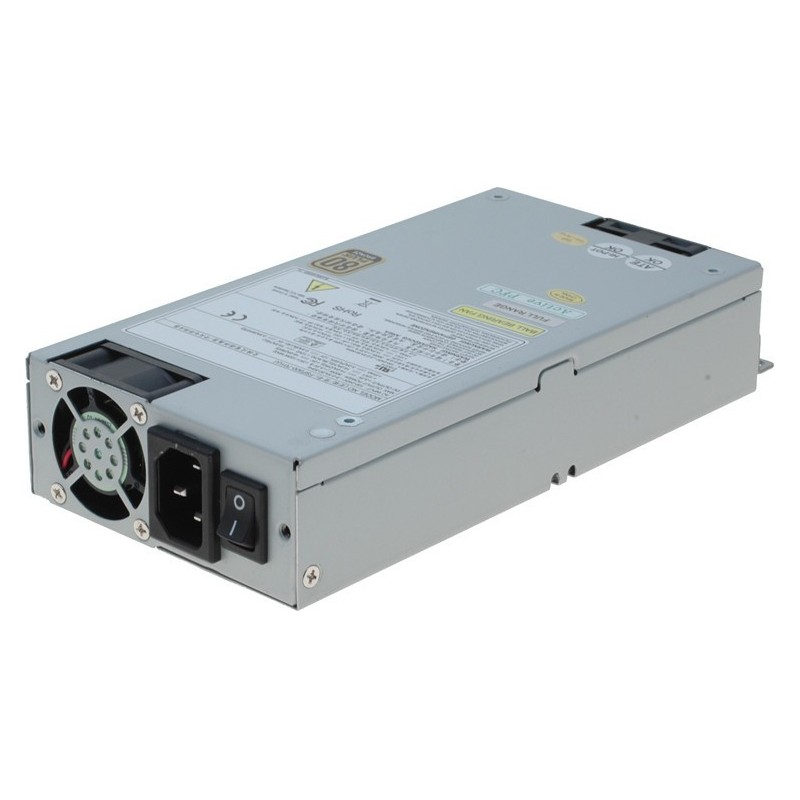

300 Watt ATX nätaggregat 1U industridatorer
Product code: PS300ATX1U
Inspänning:
115V AC till 230V AC, 47 ~ 63 Hz
Utgångsspänning Max:
16.0A @ + 3.3V DC
18.0A @ + 5V DC
16.0A @ + 12V1 DC
16.0A @ + 12V2 DC
0.5A @ -12 V DC
3.0A @ + 5Vsb DC Standby
0.3A @ -5Vsb DC Standby
Output Anslutningar:
Huvud 20 + 4Pin, (1) P4 4Pin, (1) EPS 8-Pin, (3) Molex 4Pin, (1) FDD 4Pin , (2) Seriell-ATA '
80PLUS Certified
Säkerhets Godkännande:. UL, cUL, FCC, TUV, CE
Dimensioner: 19cm X 10cm X 4cm
PS300ATX1U
2 objekt
Datablad
- Maks. effekt
- 300 W
- Luftfugtighed
- Working: 85% RH non-condensing Storage: 95% RH non-condensing
- Dimensioner
- (L x W x H): 190 x 100 x 40.5 (mm) Environment 7.49 x 3.94 x 1.6 (inch)
- Indgangsspænding
- 90-264Vac Input frequency: 47-63Hz Input current: 115Vac @ 6A, 230Vac @ 3A
- Udgangseffekt
- +3.3v: 12A; +5v: 14A; +12V: 25A; -12V: 0.3A: +5Vsb: 3A. the +3.3V and +5V max total (80W). -5V on request
- MTBF
- 100,000 Hours @ Typical
- Operating Temperature
- 0°C to 50°C
Max utspänning Totalt: 300W
Dimensioner: 19cm X 10cm X 4 cm
Input: 115V AC till 230V AC, 47 ~ 63 Hz
80PLUS Brons Certified
Huvud 20 + 4pin, 1 X P4 4pin, X en EPS-8-Pin, X 3 Molex 4pin, 4pin FDD 1X, 2X Serial-ATA
UL, cUL, FCC, TUV, CE
