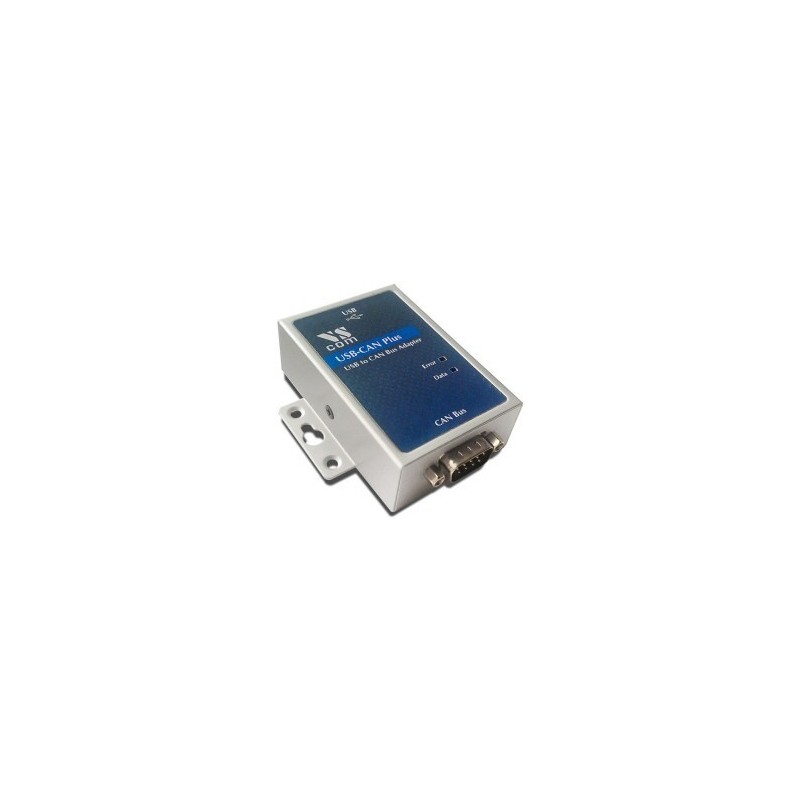

USB til CAN bus konverter, isoleret. Tilslut CAN bus udstyr over USB porten
Product code: CNV-USB-CAN-IV
CNV-USB-CAN-IV
Dataark
- Weight
- w/o box 150g; w/h box 200g
- Forsyning
- Via Input Voltage 5V (USB) Power Consumption max 80mA @ 5V, 400mW Connector USB Type B, bus powered, no external supply
- Driftstemperatur
- −25°C - 75°C
- Interface
- USB 2.0 Full Speed, USB 1.1 compliant
- Stik
- DB 9 han stik til CAN bus. USB type B hun stik
- OS SUPPORT
- Windows 2000 up to Windows 10 Windows Server 2000 up to 2012 Linux kernel 2.6+ Mac OS X support available
- Montering
- DIN-Rail (optional) Wall mount
- Isolation
- 16kV ESD surge protection 2.5kV Electrical isolation
- Dimensioner
- 50×72×22 mm (W×L×H) Case 72×72×22 mm (W×L×H) with mounting wings
- Materiale
- 0.8mm sheet metal
Konverter fra USB til CAN bus
Tilsluttes via USB
Supporterer CAN 2.0A / 2.0B, op til 1 Mbit/s
Drivers til Windows, Linux and Mac OS X
16kV ESD surge protection
2.5kV isolation
Til væg eller DIN skinne montering
