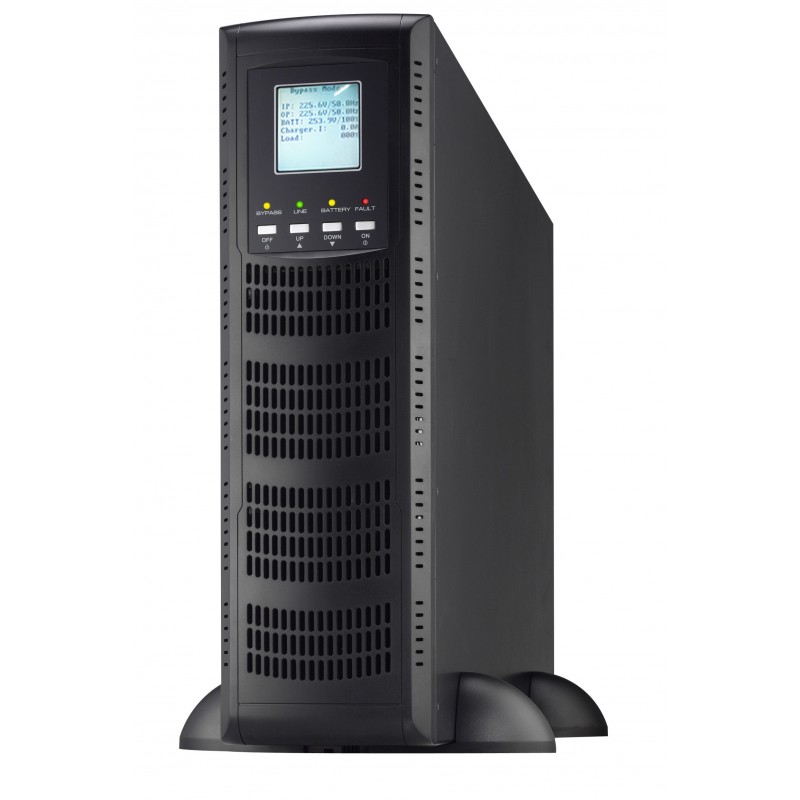

6 kVA / 5.4 kW Professional High-Level Online UPS til rack / tower, inkl. batterier. Når sikkerhed skal være i top
Product code: UPS-6KVA-RED
Undgå tab af data ved strømsvigt
UPS-6KVA-RED
Dataark
- Weight
- 17 kg
- Stik
- AC Input Connector Terminal AC Output Connector Terminal
- LED
- UPS Status, Load Level, Battery level, Input/Output Voltage, Dischrage Timer and Fault conditions
- OS SUPPORT
- Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, and MAC
- Batteri
- Battery Type / Numbers Battery Pack Voltage: 240 V Nukbers depending on the capacity of external batteries Charging Current (max.) 4.0 A Charging Voltage 273 VDC
- Input
- Voltage Range 176-300 VAC at 100% load 110-300 VAC at 75% load Frequency Range 46Hz - 54Hz or 56Hz - 64Hz Power Factor ≧ 0.99 @ Nominal Voltage (100% Load)
- Output
- Output Voltage 200/208/220/230/240 VAC Voltage Regulation ± 1% Frequency range (Synchronized Range) 46Hz - 54Hz or 56Hz - 64Hz Frequency Range (Batt. Mode) 50Hz ± 0.1Hz or 60Hz ± 0.1Hz Current Crest Ratio 3:1 (max.)
- Montering
- 19” rack
- Dimensioner
- 580mm (D) x 438mm (W) x 133mm (H) (3U)
- Kapacitet
- 6.0 kVA / 5.4 kW
- Alarm
- Battery Mode Sounding every 4 seconds Low Battery Sounding every second Overload Sounding twice every second Fault Continously sounding
- Spændingsform
- Pure Sinewave
- Støj
- Less than 58dBa @ 1 Meter
- Annen
- Single Phase with ground
6.0 kVA / 5.4 kW UPS inkl. batterier
UPS 6000VA 5400W, 176-300VAC
Model 230V: +/- 10%, 50Hz (+/- 0.1%), 2 - 6 ms typical, Simulated Sinewave
Alarm: UPS Status, ladeniveau, batteriniveau, Input/Output, afladning og fejl indikator
Dimensioner: 580mm (D) x 438mm (W) x 133mm (H) (3U)
Til 19" rackmontage
Vægt: 17 kg
