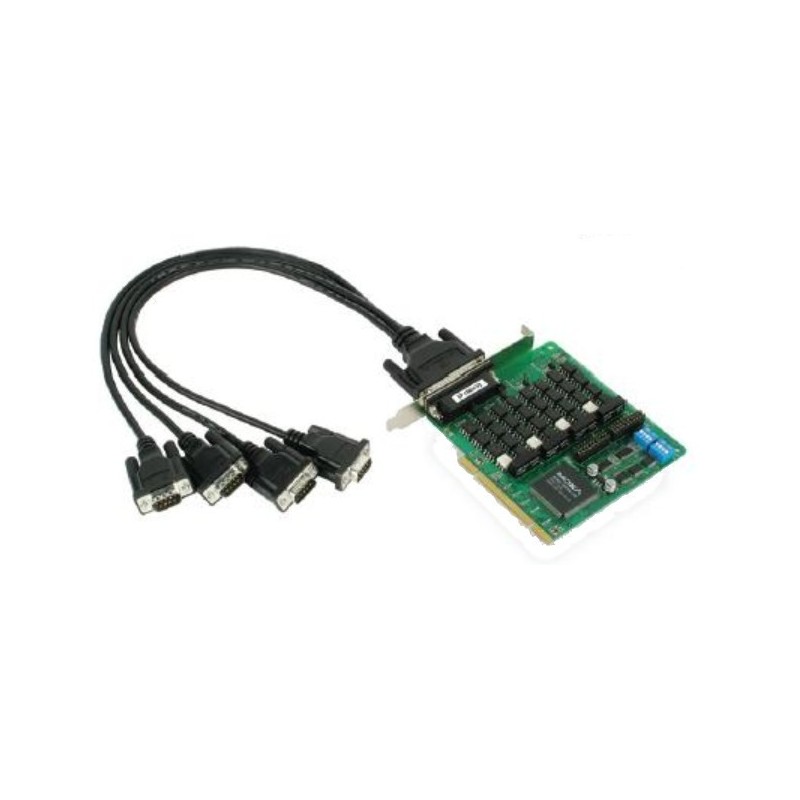

MOXA CP-134U-I, 4-port RS-232/422/485 universal PCI-seriell kort, 2 kV isolasjon, utvidet temperatur -40 til + 85 °
Product code: SER4+UNI3PCI
Moxa CP-134UI, DB9
Hardware
I/O controller 4x 16C550C or compatible
Connector type Male DB9
Interface
Bus interface 32-bit Universal PCI, for 3.3V and 5.0V expansion Slots
Serial interface RS422 / 485
No. of ports 4
Signals RS422 TxD+/-, RxD+/-, RTS+/-, CTS+/-, GND RS485 Data+/-, GND
RS485 data control Auto (Automatic Data Direction Control) or by RTS
Built-in termination resistor RS422 120 Ohm
RS485 120 Ohm, jumper enable / disable
Performance
Speed 50 - 921.6 Kbps
Max. no. of ports 16 (4 boards)
Configuration
Parity None, even, odd, space, mark
Data bits 5, 6, 7, 8
Stop bits 1, 1.5, 2
IRQ Assigned by BIOS
I/O address Assigned by BIOS
Power and Environment
Power requirement 880mA max.(+5V)
Isolation Protection 16KV ESD protection
2 KV Optical Isolation
Operating Systems supported Vista, XP, Windows
SER4+UNI3PCI
7 Produkter
Dataark
- Forsyning
- 850 mA @ 5 VDC
- Driftstemperatur
- -40 to 85°C
- OS SUPPORT
- Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows Server 2008 R2/2012/2012 R2/2016 (x64), DOS, Windows Embedded CE 5.0/6.0, Windows XP Embedded
- Dimensioner
- 115 x 120 mm (4.52 x 4.72 in)
- Data
- RTS/CTS, XON/XOFF, RTS Toggle (RS-232 only)
MOXA Serial Card
4 Ports
Universal PCI
2KV Isolasjon
128-byte FIFO
3.3 / 5V PCI og PCI-X Combatable
Port 1 og 2 Støtter RS232 / 422/485
Utvidet temperatur -40 til + 85 °
