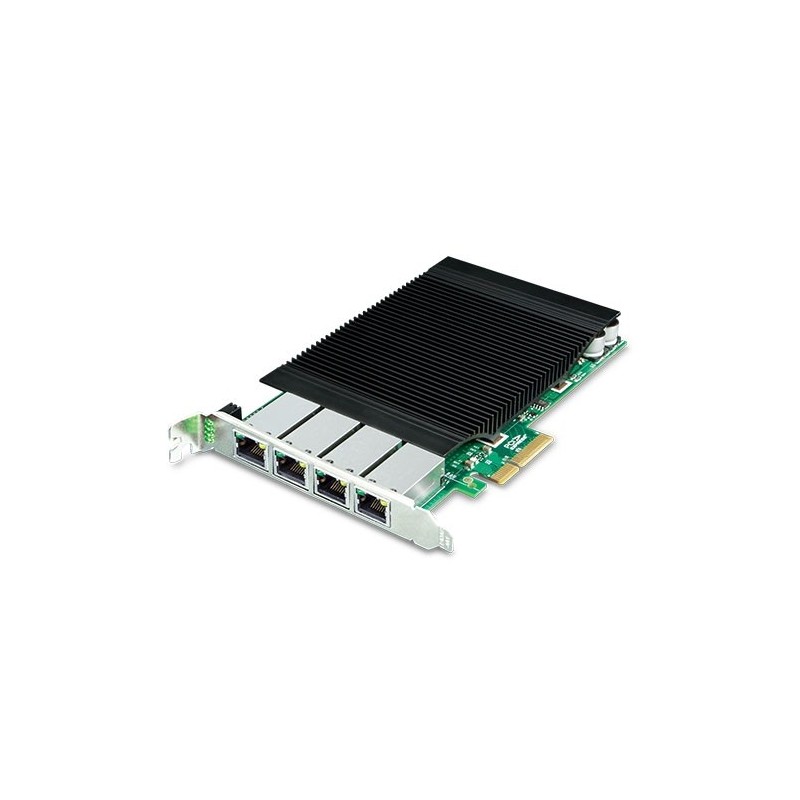

4 porter Ethernet PCI Express Server Adapter PoE +
Product code: ETH-PCIE-4POE
ETH-PCIE-4POE
Dataark
- Weight
- 251g
- Forsyning
- PCIe power supply 3.3V ±9% / 12V ±8%
- Driftstemperatur
- -10 ~ 60 degrees C
- Standarder
- IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.1Q VLANs IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus
- Interface
- 4 x RJ45
- PoE
- 30 Watt Per port
- LED
- 1000Mbps: LINK: Yellow, ACT: Green 10Mbps/100Mbps: ACT: Green
- OS SUPPORT
- Windows Server 2008R2 64bits Windows Server 2012 64bits Windows Server 2016 64bits Windows 7 32/64bits Windows 8 32/64bits Windows 10 32/64bits Linux 2.6.x, Linux 4.x VMware® 6.0
- Dimensioner
- 169 x 121 x 18 mm
- PCI
- PCI Express v2.1 (5.0GT/s) x4
- Pin
- 1/2 (+), 3/6 (-)
- Controller
- Intel I350
- Data
- 10/100/1000Mbps
- Certifications
- FCC Part 15 Class B, CE
4-Port 10/100 / 1000T 802.3at PCI Express
PoE + (120 W)
Intel I350 Controller til 4 x RJ45
Dimensjoner: 169 x 121 x 18 mm | Vekt 251 g
Driftstemperatur temperatur~~POS=HEADCOMP: -10 ~ 60 C
