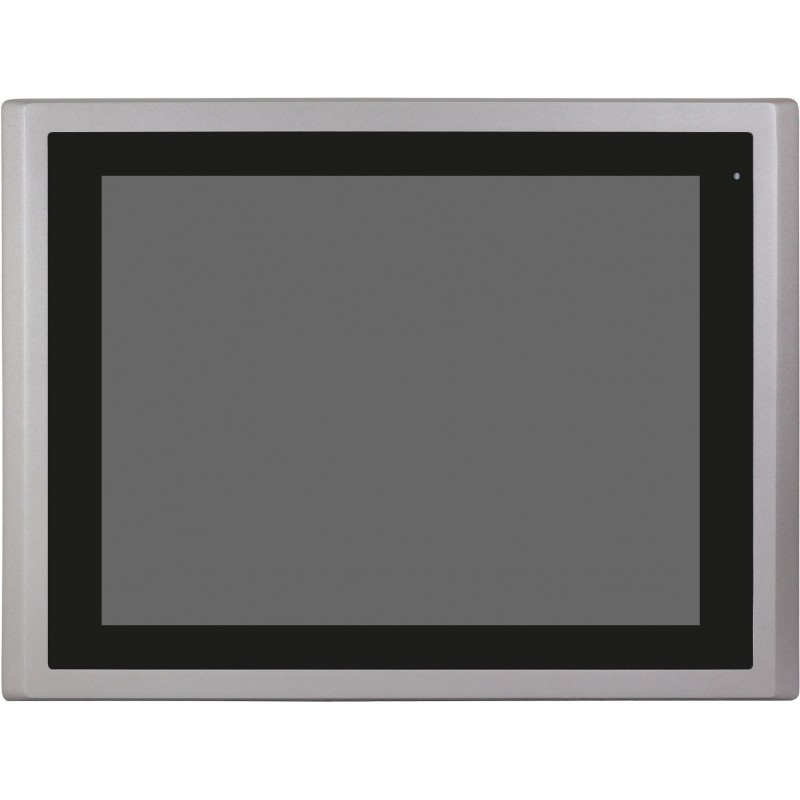

15" panel PC m/ Core i5

Product code: IPP15I3

Komplett bestykket 15” panel PC, uten OS, med Core i5 CPU.

  • Legg til sammenligning Fjern fra sammenligning

    • Ring for pris
    0,00 DKK
    Eksklusive MVA
    På vei inn
    Antall

    Panel PC med Core i3 CPU. Oprion i5 CPU. kontakt salg.
    Kan leveres komplet med OS , RAM og SSD.
    - Kontakt vores salgsafdeling for priser og mere information.

    IPP15I3

    Dataark

    CPU
    Onboard Intel 4th Gen. Core i3 CPU (option i5)
    Forsyning
    DC 9~36V 1 x 3-pin DC Power input terminal / 1 x 2-Pin Power Switch
    Driftstemperatur
    temperature(°C) 0~50˚C, -20~60°C (option)
    Porte
    1 x DB9 RS232/422/485, 1 x RS232 DB9
    OS SUPPORT
    Windows Embedded Compact 7, Windows Embedded Standard 7, Windows 7 Pro (FES) Windows 7 Ultimate (FES), Windows Embedded 8.1 Industry Pro, Windows 10 IoT
    Hukommelse
    Onboard 4GB DDR4L / max 8GB
    Lyd
    1 x Audio Line Out
    Montering
    Panel Mounting / VESA 100 x 100
    Luftfugtighed
    10 to 90%@ 40˚C, non-condensing
    Ethernet
    2 x GbE LAN RJ-45
    USB
    2 x USB 3.0 type A
    Dimensioner
    410mm x 310mm x 54.7mm
    LCD
    15" TFT-LCD Max. resolution 1024 x 768 Max. color 16.7M Luminance(cd/m²) 420 Viewangle(H°/V°) 160/160 Backlight lifetime(hrs) 50,000
    Touch
    Projected Capacitive Touch, USB
    Storage
    1 x 2.5" SATA Bay, 1 x SD card slot max. 32GB
    Annen
    Optioner: 2 x CAN 2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1xRS-232 DB-9 via TB-528C1U2P1, 2 x USB 2.0 type A , UPS battery 21W/10.8V/1.95Ah
