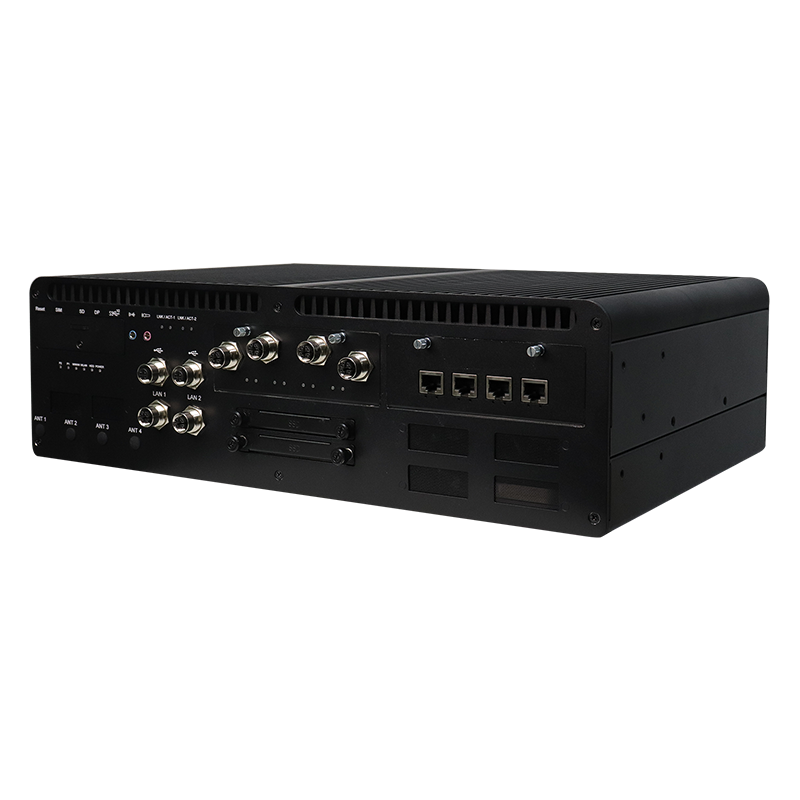

EN50155/EN45545-sertifisert 10. generasjons Intel® Core™-prosessor jernbanedatamaskinsystem med M12-tilkobling og dobbel WWAN
Product code: EPT-IX-GEN10
EPT-IX-GEN10
Dataark
- CPU
- 10th Gen Intel® Core™ Desktop processors
- Forsyning
- Main: 72V/110VDC Second: 24V DC only, once the main power loses, switch to second power automatically
- Driftstemperatur
- Operating Temp: -10°C~60°C (14°F~140°F)
- Lyd
- 1x 3.5mm green audio connector for Line-out
- Ethernet
- 2x M12 GbE option 10Gbit, Up to 10cGbe port (8 with POE) need to be ordered
- USB
- 4
- Chok/Vibration
- EN61373
- RAID niveau
- RAID 0/1/5 supported, Max. 4x SATA devices
- SIM kort
- 2
- DVI
- 1
- Approval
- EN50155: 2021, EN45545-2 CE/FCC class-A
- HDMI
- 1
- mPCIe
- 1x mPCI-E full/half-size socket
- M.2
- 1x 3042/52 M.2 B-Key WWAN (supports SIM1), 2x M.2 socket comes with USB2.0/3.0/PCI-Ex,, 2x 2242/80 M.2 M-key socket for SSD/VPU/WLAN
- SSD
- 2x 2,5" Removable device bay for SSD devices 2x M.2 M-key SSD device
- Dimension
- 482 (W) x 308 (D) x 132 (H) mm 18.97” (W) x 12.13” (D) x 5.2” (H)
- Serial Porte
- 1x Male DSUB9 for RS-485, isolated 1x Male DSUB9 connector for RS-232/485, isolated 1x Female DSUB9 for 8x DO and ground by cable, isolated
- RAM
- 2x DDR4-2666 SO-DIMM, 2x 8GB (default) Maximum size supported: 128GB
- WiFi
- Support wifi 6 CNVi, 4 x SMA antenna holes with cap.
Støtter 10. generasjons Intel® Core™ Desktop-prosessorer
AI-løsning for transport
Maks. 128 GB RAM
2x Gbit Lan M12
4x USB
2x SIM-spor
2x 2,5" SSD, RAID 0/1/5
1Xmicro SSD
1x HDMI
1x DVI-D
1 x RS-485, 1 x RS232/485 isolert
M12 kontakter
Opptil 10x GbE-porter (8x med PoE-kapasitet)
10G LAN (må bestilles spesial)
Støtter Intel® Movidus Vision Acceleration M.2-moduler
Støtter Wi-Fi 6 CNVi, doble WWAN-kanaler
1x USB Type-C med grafikkutgang for rask innstilling og diagnostikk
EN50155 (2021) / EN45545-2 sertifisert
