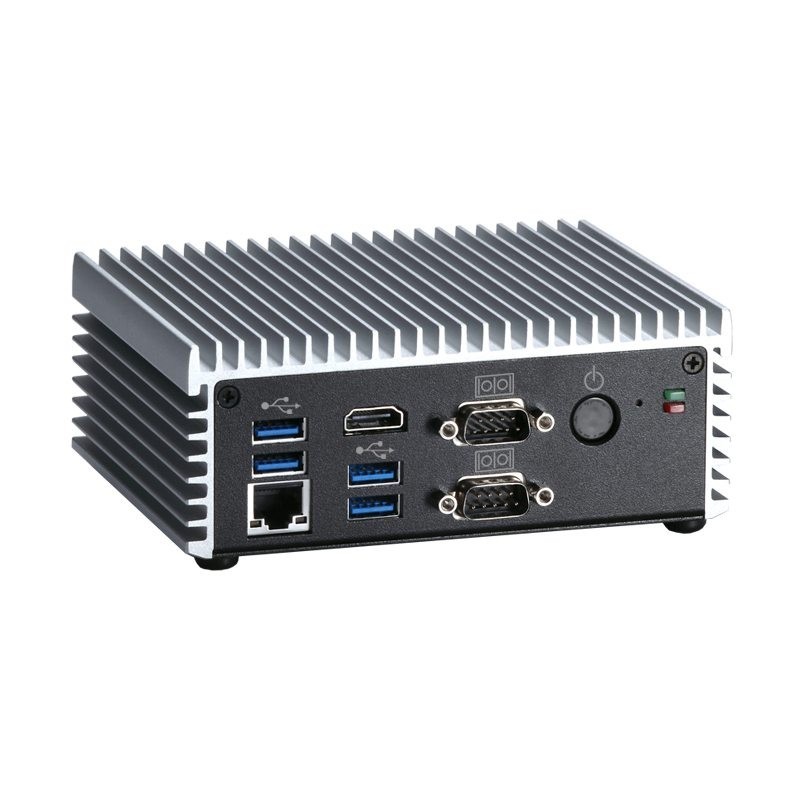

Innebygd PC Intel® Core ™ i3-5010U ULT SoC, HDMI / DisplayPort, 2 GbE LAN, 4 USB 3.0, 2 COM og PCIe Mini-kort
Product code: EPC-I3-2COM4USB
En af vores embedded løsninger. kompakt med i3 CPU. Kan leveres med Celeron/i5 processor.
EPC-I3-2COM4USB
Dataark
- Weight
- (net/gross) 0.8 kg (1.76 lb)/1.5 kg (3.31 lb)
- Sammensetninger
- Construction Aluminum extrusion and heavy-duty steel
- CPU
- CPU Intel® i3-5010U 2.1 GHz Broadwell ULT SoC
- Forsyning
- 12Vdc Jack connection
- Udgange
- 1 x DisplayPort 1 x HDMI
- Driftstemperatur
- -20°C ~ +50°C (-4°F ~ +122°F) (with W.T. SSD) Humidity 10% ~ 90% , non-condensing
- Porte
- 1 x RS-232/422/485 1 x RS-232
- Chipset
- SoC Integrated
- BIOS
- AMI
- Watchdog
- 255 levels, 1 ~ 255 sec.
- LED
- 1 x orange LED for HDD active
- OS SUPPORT
- WE8S, WES7, Linux, WIN 10
- Farve
- Standard Color Silver-Black
- Hukommelse
- System Memory 1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB
- IP-Tæthed
- IP40
- Ethernet
- 2 x 10/100/1000 Mbps Ethernet (Intel® i218LM supports wake on LAN,PXE Boot ROM; i210AT)
- Dimensioner
- 141.5 mm (5.57") (W) x 106 mm (4.17") (D) x 55 mm (2.17") (H)
- Chok/Vibration
- Vibration Endurance 3 Grms with SSD™ (5-500Hz, X, Y, Z directions)
- Storage
- 1 x 2.5” 9.5mm SATA HDD drive bay
- Approval
- CE, UL, FCC & VCCI
- Msata
- 1 x mSATA
- Annen
- 1 x VDC 12V power input connector 1 x ATX power switch 1 x Reset button
- WiFi/WLAN
- 2 x SMA type connector opening for antenna, Withour PCI express ethernet controller
Intel® Haswell & amp; Core ™ i3-5010U Broadwell ULT SoC
204-pin DDR3L-1600 SO-DIMM, opptil 8 GB
Vaskløs driftdesign med kompakt størrelse
1 RS-232/422/485 og 1 RS-232-port
En 2,5 "9,5 mm SATA HDD-stasjon og mSATA-grensesnitt
1 PCI Express Mini-kortspor og 4 USB 3.0-porter
DisplayPort og HDMI med dobbeltvisning støttet
