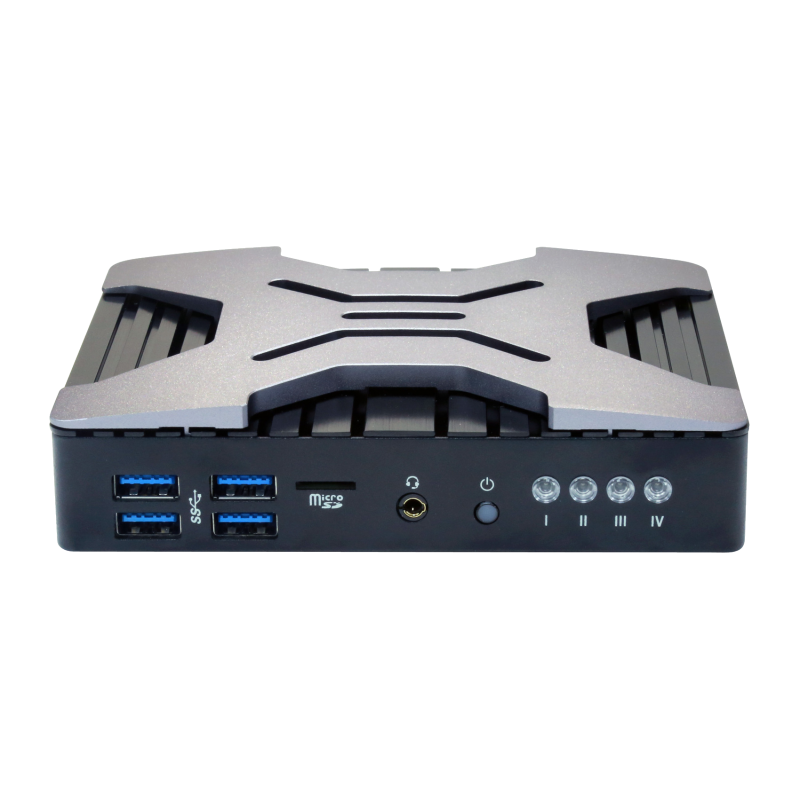

Vifteløs innebygd PC med Intel® Braswell SoC-prosessor, 1,6 GHz, med HDMI
Product code: EPC-BW-2ETH2HDMI
Kan fås med EU plug eller US plug
EPC-BW-2ETH2HDMI
1 Artikkel
Dataark
- Weight
- 0.86Kg
- Sammensetninger
- Aluminum alloy
- CPU
- Soldered onboard Intel® Celeron® N3060, 1.6GHz
- Driftstemperatur
- -10 ~ 55 °C
- Strømforbrug
- Max. 15W (w/o I/O card)
- Chipset
- SoC Integrated
- Watchdog
- 1~255 levels reset
- OS SUPPORT
- Windows® 7 / Windows® 10 / Linux (Kernel: 3.1X)
- Hukommelse
- 2 x 204-pin DDR3L SO-DIMM socket, supporting 1600MHz SDRAM up to 8GB (2GB DDR3L SO-DIMM pre-installed)
- Montering
- Support VESA-mount
- Luftfugtighed
- 0%-85% RH @ 55 °C (non-condensing)
- Strømforsyning
- DC 19V input
- Harddisk
- 1 x mSATA, 1 x MicroSD socket,
- Dimensioner
- 141 x 34.8 x 107.6mm
- I/O
- 1 x Micro-B RS232 half-duplex, 4 x USB 3.0 ports, 1 x Micro-B USB 2.0, 2 x RJ-45 ports for GbE, 2 x HDMI, 1 x 3.5mm stereo headphone jack, 1 x Half-size Mini-PCIe slot
- Grafik
- Intel® HD Graphics 400
- Chok/Vibration
- 3 Grms/5~500Hz/random operation, Operating 50G (11ms), Non-operating 80G with eMMC
- Certifications
- CE, FCC Class B
Intel® Celeron® N3060, 1.6GHz
2 x 204-pin DDR3L SO-DIMM Socket.
1600MHz SDRAM op til 8 GB (2GB pre-installed)
Chipset: SoC Integrated, Intel® HD Graphics 400
Harddisk: mSATA, MicroSD socket
1 x Serial ATA port med 600MB/s HDD transfer rate
2 x Realtek 8111HS GbE controllers (LAN chipset)
1 x Micro-B RS232 half-duplex
4 x USB 3.0 ports, 1 x Micro-B USB 2.0, 2 x RJ-45 ports for GbE
2 x HDMI, Max. resolution : 3840 x 2160
1 x 3.5mm stereo headphone jack
Supports 2/4/5.1/7.1 channel configurations via HDMI
Driftstemperatur:-10 ~ 55 °C, Fugt: 0%-85% RH @ 55 °C
0.86 KG, 141 x 34.8 x 107.6
OS Support: Windows® 7 / Windows® 10 / Linux (Kernel: 3.1X)
