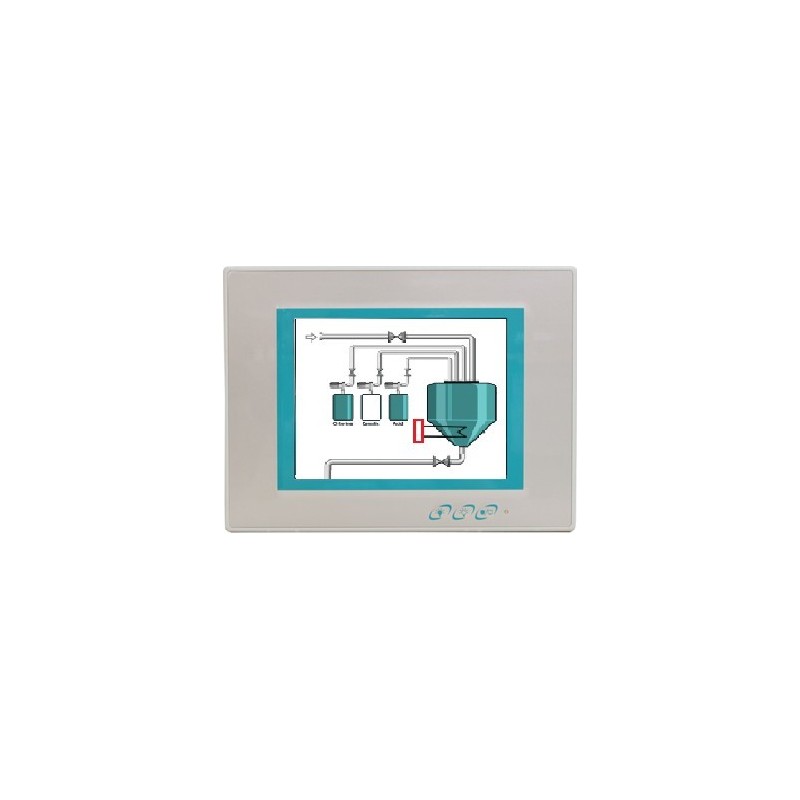

8" panel PC med høj opløsning: 1024 x 768 XGA, Atom™ Processor N2600 1.6GHz

Product code: IPP8N2600

8" LCD, LED backlight
Resolution max. 1024x768
IP65 front

  • Legg til sammenligning Fjern fra sammenligning

    • Ring for pris
    0,00 DKK
    Eksklusive MVA
    På vei inn
    Antall

    Build To Order

    Kontakt salg vedr. OS, HDD/SSD

    Andre modeller og muligheder.

    IPP8N2600

    Dataark

    Weight
    1.93 kg (4.25lb)
    CPU
    Intel® Atom™ Processor N2600 1.6GHz
    Forsyning
    DC 12V from Terminal Block or Power over Ethernet from RJ-45 Jack
    Porte
    2 x RS-232 DB-9 ports
    Chipset
    Intel® NM10
    Watchdog
    1~255 levels reset
    OS SUPPORT
    Windows 7 Professional / Windows Embedded 7 Standard (WS7E)
    Hukommelse
    2GB DDR3 memory soldered on board
    Lyd
    Speaker 2 x 1.5W Speaker, 1 x Line-out phone jack
    Montering
    Wall Mounting and VESA-75/100 Mounting
    Skærm
    8" TFT LCD Panel Max. Resolution 1024 x 768 (XGA) Max. Colors 16.2M Luminance 300 cd/m², View Angle (U/D/R/L) 75°/75°/70°/70°
    Temperatur
    Operating Temp. 0 ~ 60ºC (32 ~ 140°F) Storage Temp. -20 ~ 70°C (-4 ~ 158°F)
    Luftfugtighed
    10 ~ 95% RH @ 60°C (non-condensing)
    Ethernet
    1 x Intel® 82583V GbE controller
    USB
    2 x USB 2.0/1.1 Type-A ports
    Dimensioner
    (W x H x D) 274.96 x 207.96 x 40.0 mm (10.82” x 8.18” x 1.57”)
    Grafik
    Intel® GMA3600
    Chok/Vibration
    Vibration 5 ~ 500Hz, 2Grms Random Shock Operating 20G, 11ms
    Touch
    5 Wire Resistive Single Touch
    Udvidelser
    1 x mini-card socket for mSATA SSD
    Storage
    1 x mini card slot for mSATA SSD
    Approval
    Regulatory CE/FCC Class-B, EMC / EMI CE, FCC Class A
    Annen
    Brightness up/down, Screen on/off, Anti-spark Power Circuit
