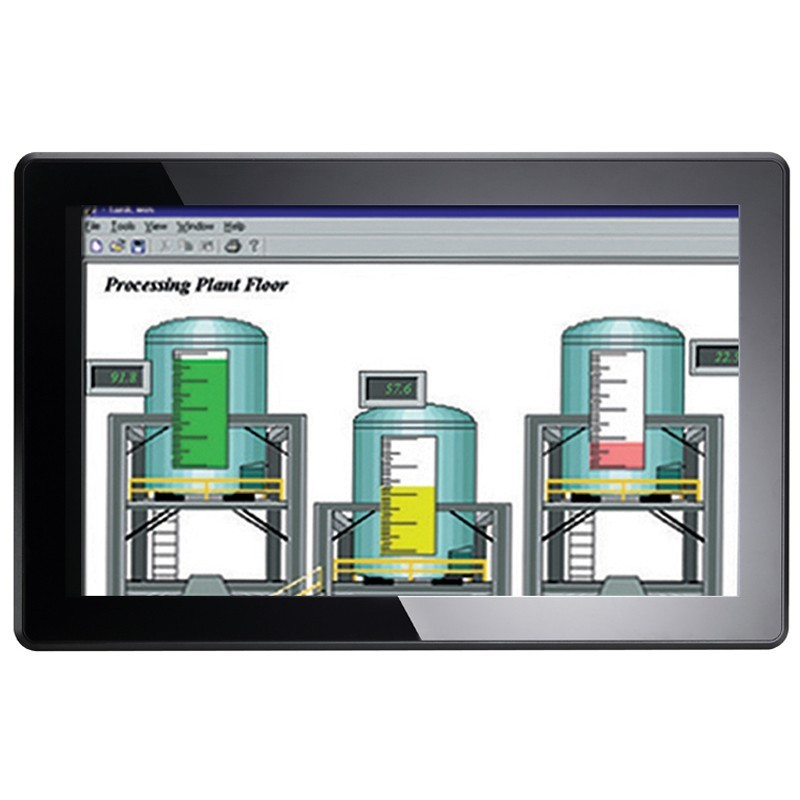

21.5" Panel PC barebone til socket 4th generation Intel® Core™ i7/i5/i3, Multi Touch
Product code: PPC21.5IB
Build To Order
Kan leveres komplet med RAM,SSD og CPU.
KOntakt slag for samlet pris.
PPC21.5IB
Dataark
- Weight
- 8.1 kg (18.75 lb) / 11.0 kg(24.25 lb)
- CPU
- LGA1150 socket 4th generation Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (Haswell), up to 45W TDP
- Porte
- 2 x RS-232/422/485
- Chipset
- Intel® H81
- Watchdog
- 255 levels, 0~255 sec.
- OS SUPPORT
- 0°C ~ +40°C (+32°F ~ +104°F)
- Hukommelse
- 1 x 204-pin SO-DIMM DDR3 1333/1600 up to 8 GB
- Lyd
- Line-out & MIC-in
- Montering
- Mounting Panel mount VESA mount Desktop stand Wall mount
- IP-Tæthed
- IP65 front bezel
- Skærm
- 21.5" Full HD TFT LCD 250 nits 1920 x 1080
- Luftfugtighed
- 20% ~ 90% @ 40°C, non-condensing
- Ethernet
- 2 x 10/100/1000Mbps
- USB
- 2 x USB 3.0 2 x USB 2.0
- Strømforsyning
- 19VDC with adapter Power Comsumption 112W
- Dimensioner
- (W x D x H) 547.6 x 89.0 x 339.0 mm (21.56" x 3.50" x 13.35")
- Grafik
- 1 x HDMI
- Chok/Vibration
- 1.0 G, 10 ~ 500 Hz, random for CFast™ card
- Touch
- Projected Capacitive multi-touch
- Storage
- 1 x 2.5" SATA HDD 1 x CFast™ 1 x mSATA
21.5" Full HD TFT
1920 x 1080
4 th. Gen. Intel i7/i5/i3, Haswell
Max. 8GB RAM
2x COM
4x USB
2x Gbit
