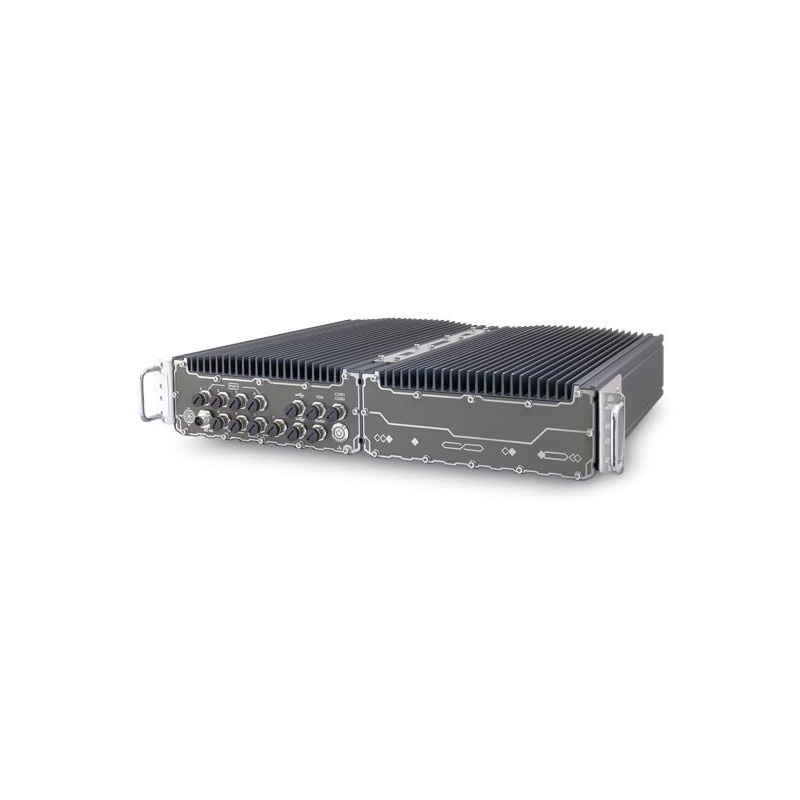

IP67 vanntett GPU-datamaskin som støtter NVIDIA® RTX A2000/ Tesla T4/ Quadro P2200 med alle M12-kontakter
Product code: EPC-GPU
EPC-GPU
Dataark
- CPU
- Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket) - Xeon E 2278GE (8C/16T) / 2278GEL (8C/16T) / 2176G (6C/12T) - i7-9700E, i7-9700TE, i7-8700, i7-8700T - i5-9500E, i5-9500TE, i5-8500, i5-8500T - i3-9100E, i3-9100TE, i3-8100, i3-8100T
- Forsyning
- 8V to 48V DC input (M12 S-coded) Ignition Control Built-in ignition power control (IGN/ GND signal via M12 serial port connector)
- Udgange
- 1x VGA (M12 A-coded), supporting 1920 x 1200 resolution
- Driftstemperatur
- Chipset
- Intel® C246 platform controller hub
- PoE
- 1x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I219 (M12 X-coded) 3x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded) 7x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded)
- Hukommelse
- Up to 64 GB ECC/ non-ECC DDR4-2666/ 2400 SDRAM(two SODIMM sockets)
- Lyd
- depens on solution contact sales
- Montering
- Need to be ordered RACK or Wall mount
- Luftfugtighed
- 10%~90% , non-condensing
- Ethernet
- Optional: 1x 10 GbE port by Intel® X550AT controller (M12 X-coded) contact DANBIT A/S
- USB
- from 3 to 5 USB depens on solution contact our sales
- Mål og vægt
- depens of solution from 12 to 12.2Kg
- Dimensioner
- 440mm (W) x 310mm (D) x 86.5mm (H) (excl. rack-mount bracket)
- Grafik
- Integrated Intel® UHD Graphics 630
- Chok/Vibration
- Vibration MIL-STD-810G, Method 514.7, Category 4 Shock MIL-STD-810G, Method 516.7, Procedure I
- Approval
- EN-50155, CE/FCC Class A, according to EN 55032 & EN 55035
- Msata
- 2x full-size mSATA port (mux with mini-PCIe)
- mPCIe
- depens on solution from 2 full to 4 contact sales
- TPM
- Supports TPM 2.0
- M.2
- 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation
- SSD
- 2x Internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1
- AMT
- Supports AMT 12.0
IP67 vifteløs GPU-datamaskin støtter Tesla Ta / Quadro P2200
IP67 vifteløs GPU-datamaskin med M12-kontakt
IP67 vanntett GPU-datamaskin med NVIDIA® RTX A2000/ Tesla T4/ Quadro P2200
Intel® Xeon® E eller 9th/ 8th-Gen Core™ i7/ i5/ i3 CPU
Patentert vanntett 2U 19" chassis for stativ eller veggmontering*
Garantert ikke-strupende GPU-ytelse opp til 62°C omgivelsestemperatur
Opptil åtte 802.3at Gigabit PoE+-porter via M12 X-kodede kontakter
VGA, USB 2.0 og COM-porter via M12 A-kodede kontakter
8~48V bredspektret DC-inngang med innebygd tenningskontroll
MIL-STD-810G og EN 50155 sertifisert
*ROC-patent nr. I697759, *CN-patentsøkt
