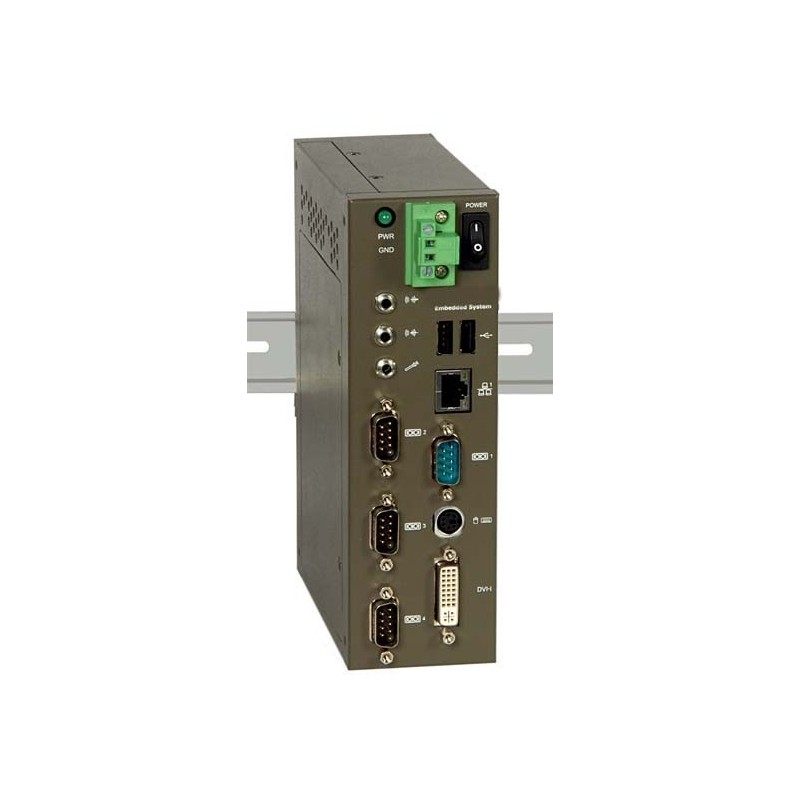

Fanless Mini PC m / 1.6GHz ATOM CPU støtter vinn XP
Product code: IPC-MINI-DIN
IPC-MINI-DIN
3 Produkter
Dataark
- CPU
- Intel Atom N270 1.6GHz low power
- Forsyning
- 12V DC
- Driftstemperatur
- -20° C to 45°
- Porte
- RS-232/485 1 DB-9 RS-232/485 and 3 DB-9 RS-232
- Chipset
- Intel® 945GSE North & ICH 7-M South Bridge Chipset
- BIOS
- AMI BIOS
- Watchdog
- Programmable WDT from 1 to 255 seconds
- Hukommelse
- 2GB 533MHz
- Lyd
- 1 Line-in, 1 Line-out, 1 Speaker out
- Montering
- DIN RAIL mount
- Tastatur/mus
- Keyboard & Mouse Supports PS/2 type keyboard and mouse interface Supports keyboard and mouse Y type cable
- Ethernet
- 1 x Realtek 8111 100/1000 Mbps LAN interface with Wake-On-LAN & DMI
- Digital I/O
- Up to 4 D-In, 4 D-Out internal connector
- Dimensioner
- 56.5mm (W) X 180 mm (H) X 130mm (D)
- Grafik
- Display Function 24 bit DVI-I dual display interface Supports DVI + VGA with DVI-I to DVI and VGA Y cables
- Storage
- Disk Drive Storage 1 channel SATA interface, 1 internal CF module slot
Kompakt PCDual Core Atom 1,6 GHz CPU.
Dual Display VGA, DVI.
2 GB RAM - ikke inkludert.
4 x COM.
1 x RJ45 Ethernet - 2 x USB
DIN-feste | DOS / WIN XP / WIN 7-støtte - kjøpt
