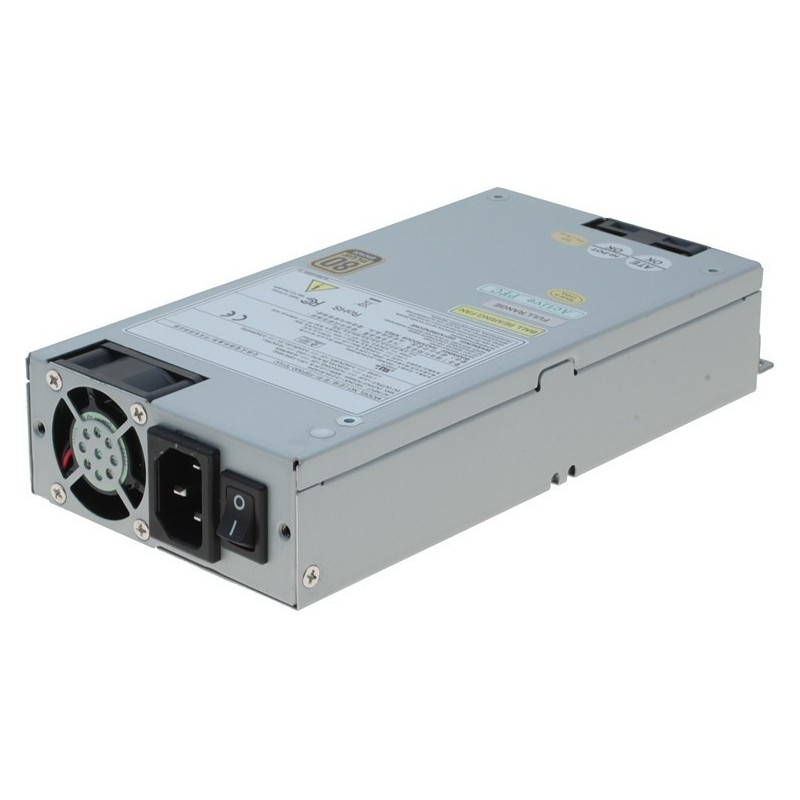

300 Watt ATX strømforsyning 1U industri-PC-
Product code: PS300ATX1U
Inngangsspenning:
115 V AC til 230 V AC, 47 ~ 63Hz
utgangsspenning Max:
16.0A + 3,3 V like
18.0A + 5V DC
16.0A + 12V1 DC
16.0A + 12V2 DC
0.5A @ -12V DC
3.0A + 5Vsb DC Standby
0.3A @ -5Vsb DC Standby
utganger: On Main 20 + 4pin, (1) P4 4pin, (1) EPS 8-Pin, (3) Molex 4pin, (1) FDD 4pin , (2) Serie-ATA '
80plus Certified
Sikkerhets godkjennelse:. UL, cUL, FCC, TUV, CE
Dimensjoner: 19 cm x 10 cm x 4 cm
PS300ATX1U
1 Artikkel
Dataark
- Maks. effekt
- 300 W
- Luftfugtighed
- Working: 85% RH non-condensing Storage: 95% RH non-condensing
- Dimensioner
- (L x W x H): 190 x 100 x 40.5 (mm) Environment 7.49 x 3.94 x 1.6 (inch)
- Indgangsspænding
- 90-264Vac Input frequency: 47-63Hz Input current: 115Vac @ 6A, 230Vac @ 3A
- Udgangseffekt
- +3.3v: 12A; +5v: 14A; +12V: 25A; -12V: 0.3A: +5Vsb: 3A. the +3.3V and +5V max total (80W). -5V on request
- MTBF
- 100,000 Hours @ Typical
- Operating Temperature
- 0°C to 50°C
Max Output Voltage Totalt: 300W
Mål: 19cm x 10cm x 4 cm
Input: 115V AC til 230V AC, 47 ~ 63Hz
80PLUS Bronze-sertifisert On Main 20 + 4pin, en X P4 4pin, X1 EPS-8-Pin, X3 Molex 4pin, 4pin FDD 1X, 2X Serial-ATA
UL, cUL, FCC, TUV, CE
