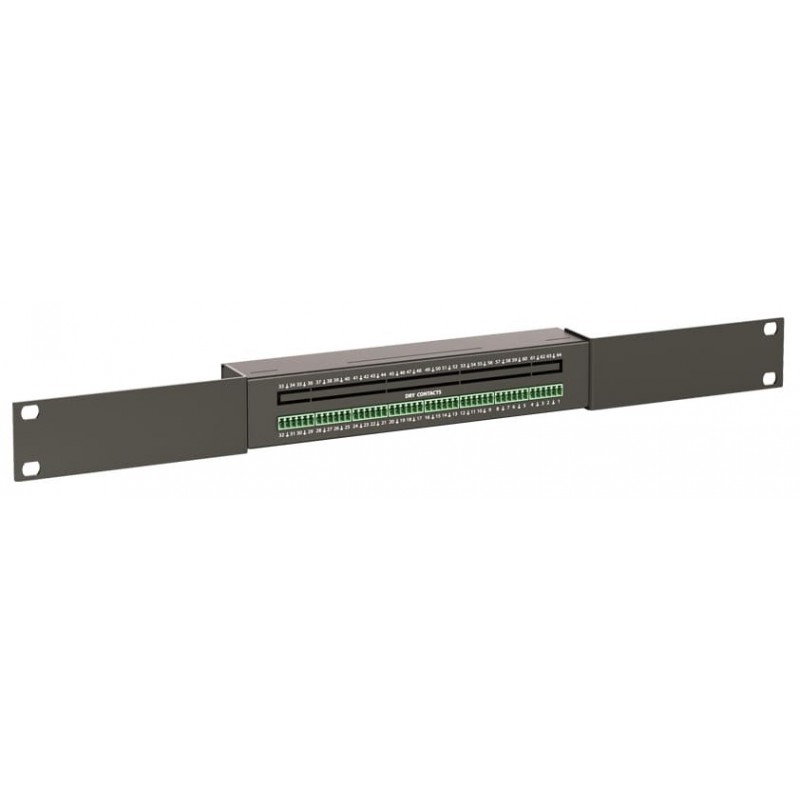

Dry Contacts Digital CAN Unit

Product code: VTL100042

Compact digital unit for expanding dry contact capacity

Adds x32 dry contact inputs

Input Terminals 32 dry contacts

Daisy Chain Support

Operating Humidity 0 to 95%

Storage Conditions -40° С to +100° C, 0 to 95% humidity

Operating Temperature -10° C to +80° C

Dimensions 215 x 40 x 40 mm

Mounting Options 19" rack, desktop, wall mount

Power Consumption 1 Watt

Package Includes Dry contacts unit, cable, rubber foot, terminal, screws, rack brackets

  • Add to Comparison Remove from Comparison
    • 1,780.00 DKK
    Tax excluded
    On the way in
    Quantity

    Allows increasing the number of dry contacts connected to any monitoring unit. Adds 32 dry contacts. Can be connected to any CAN port. Max. distance from the monitoring unit is 225 meters. Maximum 100 dry contacts may be connected to 1 monitoring system.
    VTL100042

    Data sheet

    Driftstemperatur
    -10° C to +80° C
    Input
    Dry contacts / Digital inputs: 32 contacts & RJ-12 ports: x2
    Type
    CAN sensor
    Dimensioner
    (Width, Height, Depth) 215 x 40 x 40 mm
    power consumption
    1 Watt
