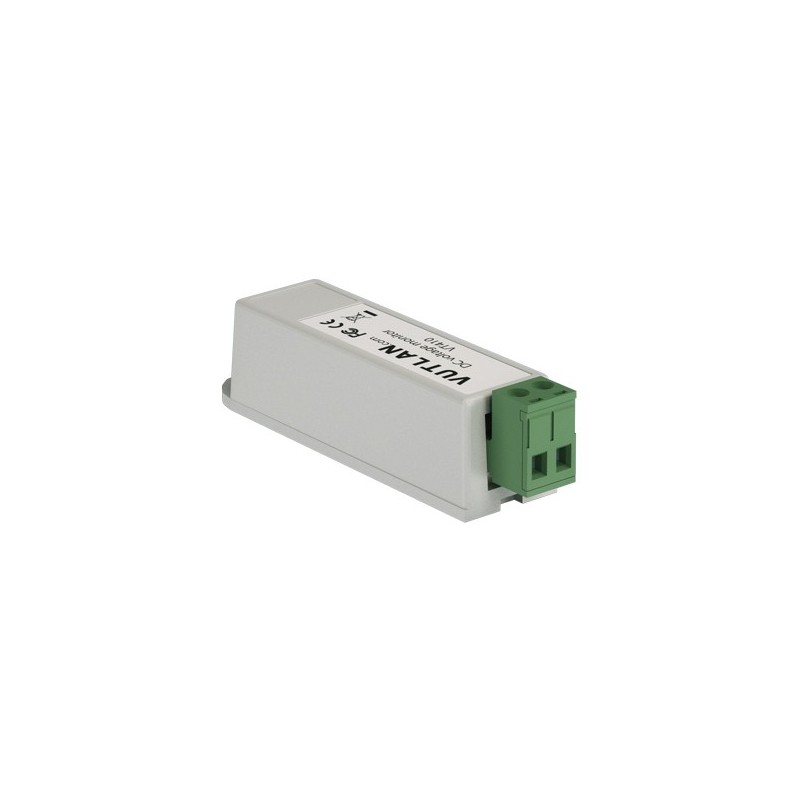

DC Voltage Monitor 75V

Product code: VTL100039

Compact and efficient DC voltage monitor for systems up to 75V

Voltage Measurement 0-75V

Operating Temperature -10° C to +80° C

Output 4 pin terminal

Weight 100 g

Power Consumption 100 mW

Dimensions 60×18×18 mm

Mounting: Desktop, Wall mount

Package Contents DC voltage monitor, 3m shielded cable (6P6C RJ12), TBW 5-2P

  • Add to Comparison Remove from Comparison
    • 960.00 DKK
    Tax excluded
    On the way in
    Quantity

    A device for measuring DC voltage up to 75V, converting data for IP monitoring systems. Features sensor assignment and data conversion functionality.
    VTL100039

    Data sheet

    Weight
    100 g
    Driftstemperatur
    Min. -10° C - Max.80° C
    Output
    4 pin terminal
    Dimensioner
    60 × 18 × 18 mm
    Volt
    0-75 V
    power consumption
    100 MW
