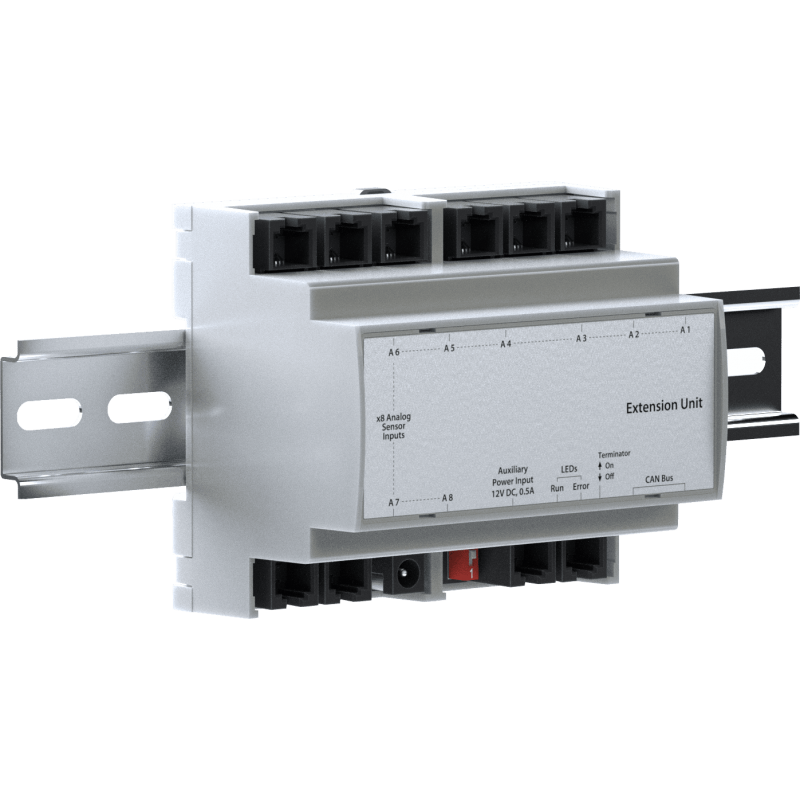

Sensor extension unit for DIN mounting

Product code: VTL100037

Expands sensor capacity for enhanced monitoring

Connects up to 8 analog sensors

Ports x8 RJ11 6P4C, x2 CAN bus

Power 12V DC, 0.5A

Operating temperature -10° C to +80° C

Dimensions 107 x 90 x 65mm

Weight 130g

  • Add to Comparison Remove from Comparison
    • 1,780.00 DKK
    Tax excluded
    On the way in
    Quantity

    Increases the number of sensors connected to any monitoring unit. Adds x8 analog sensors. Connects on CAN port and allows further CAN daisy chain connection. Sensors connected to the extension unit appear in the system automatically. Max. distance from the monitoring unit is 225 meters. Max. x8 CAN devices can be connected to a CAN bus chain.
    VTL100037
