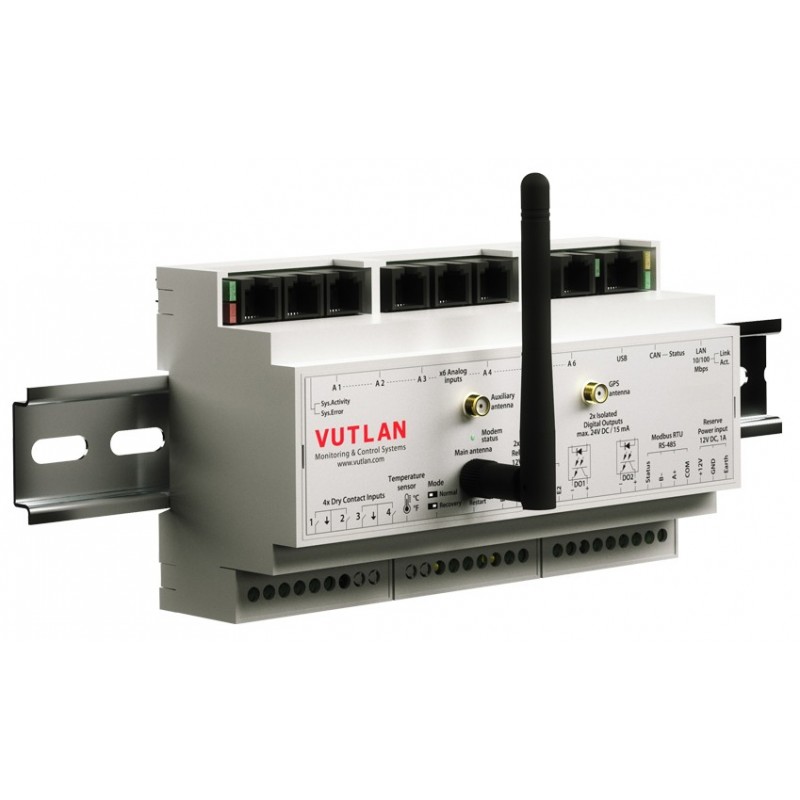

Industrial monitoring system | DIN
Product code: VTL100033
The industrial DIN monitoring and control system is specially designed for DIN-rail mounting racks. Includes x6 analog sensors, CAN sensor bus, Ethernet port, RS-485 / Modbus RTU, x4 digital inputs, x2 12V DC 0.25A relays, x2 digital outputs. Supports a full range of sensors and devices.
VTL100033
Data sheet
- Driftstemperatur
- 0 to 70 °C
- Kanaler
- x6 ports
- Input
- x4 digital inputs
- Output
- x2 Isolated Digital outputs, max. 24VDC, 15mA
- Sensor
- Temperature sensor: Accuracy +/- 1 °C, built-in & Voltage sensor: Accuracy 1%,
- Relæ
- x2 Electromagnetic Relay Outputs, 12VDC, 0.25A
- Ethernet
- 10/100Mbps
- USB
- For USB camera, USB flash, USB hub
- Dimensioner
- 160 x 90 x 58 mm
- CAN Bus Interface
- Up to 8 CAN devices
Designed for DIN rail installations, this monitoring controller offers comprehensive sensor integration
Built-in LTE modem is sold separately and can be purchased separately
Analog ports 6
Digital inputs: 4
Digital outputs: 2 isolated, max. 24VDC, 15mA
Relay outputs: 2 electromagnetic, 12VDC, 0.25A
Built-in sensors temperature (±1°C accuracy), voltage (1% accuracy)
Modbus RTU Supports up to 32 devices
Operating temperature: 0 to 70°C
Dimensions: 160 x 90 x 58 mm
Power supply: DC 12V
