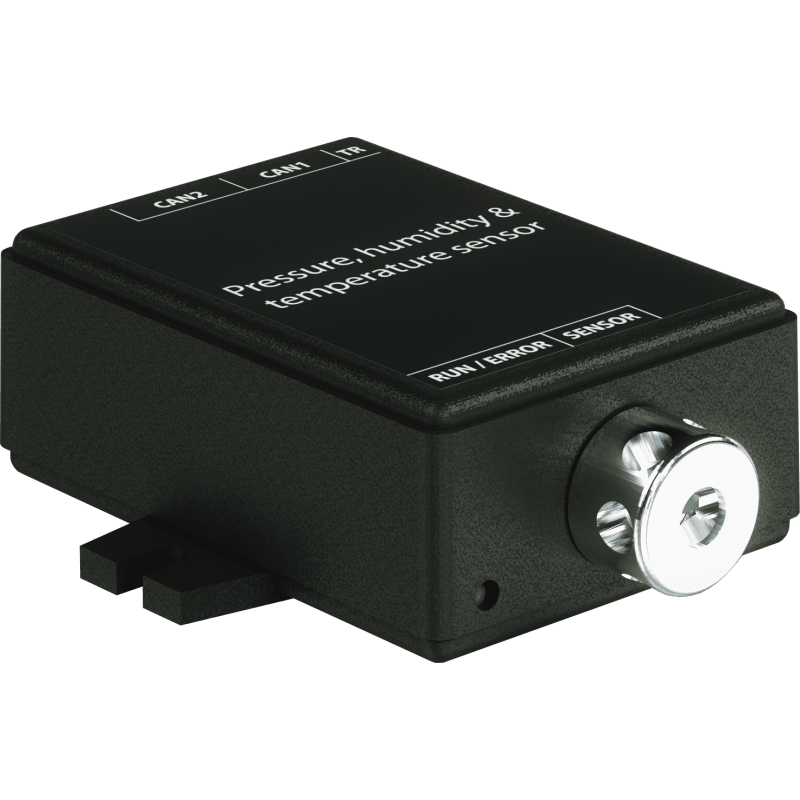

Pressure, Humidity and Temperature Sensor

Product code: VTL100043

Compact and efficient sensor for accurate pressure, humidity, and temperature readings

Sensor Type CAN digital

Pressure RMS Noise 0.2Pa (1.7cm equivalent)

Pressure Error ±0.25% (1m at 400m height change)

Pressure from °C: ±1.5Pa/K (±12.6cm at 1°C change)

RH Accuracy ±3% RH (max)

Hysteresis ≤2% RH

Temperature Accuracy ±1.5°C

Pressure Range 300 to 1100 hPa

Operating Temperature -40 to +85 °С

Power 12V DC 1A, 1 Watt

Dimensions 68x47x26 mm

Weight 160 g

Mounting Options Desktop, Wall mount

  • Add to Comparison Remove from Comparison
    • 1,110.00 DKK
    Tax excluded
    On the way in
    Quantity

    High-quality digital sensor for measuring pressure, humidity, and temperature. Ideal for a wide range of monitoring applications.
    VTL100043

    Data sheet

    Weight
    160 g
    Driftstemperatur
    −40 to +85 °С
    Type
    CAN digital sensor
    Dimensioner
    68x47x26 mm
    Range
    Pressure 300 to 1100 hPa
    Power Supply
    12V DC, 1A, 1 Watt
    Inputs/Outputs
    x2 RJ11 6P4C ports
