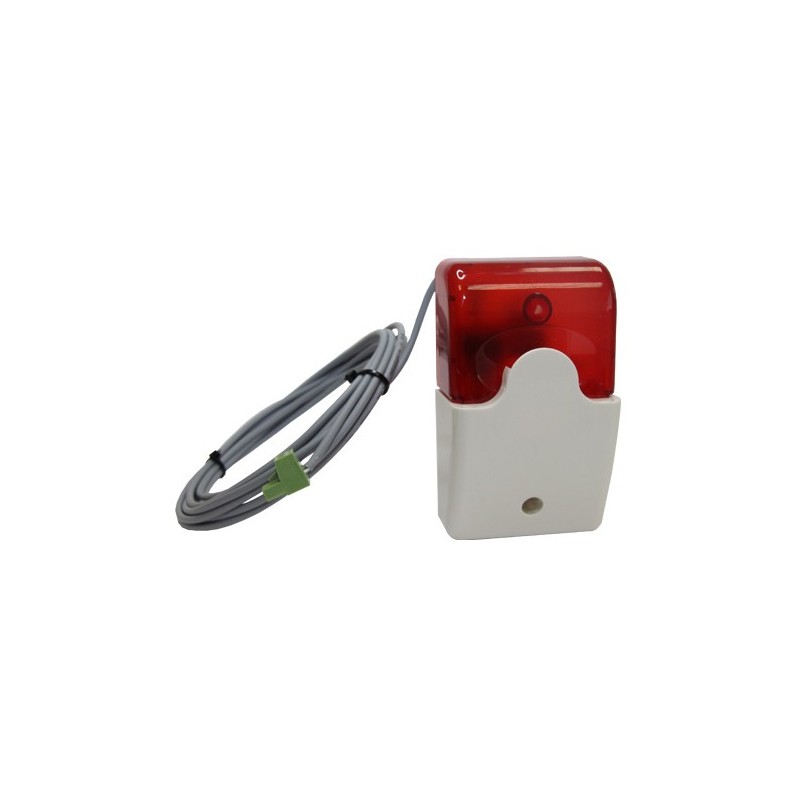

Sound and Light Alarm for Monitoring Systems
Product code: VTL100018
An essential device for light and sound alarms, this unit connects to a 12V DC, 0.25A electronic relay of monitoring systems, ensuring clear and potent auditory and visual signals in critical situations.
VTL100018
Data sheet
- Weight
- 150g
- Driftstemperatur
- Min. -50 °C - Max.105 °C
- Dimensioner
- 70 x 36 x 56 mm
- power consumption
- 250mA
12V DC sound and light alarm with 108 dB sound pressure and 3.8 kHz tone frequency
Input: Connects to 12V DC, 0.25A electronic relay
Cable Length: 1.5 m
Installation: Wall or ceiling mount
Functionality: Can be controlled manually or through logic in the device interface
Max Current Consumption: 250 mA
Operating Temperature: -50° C to +105° C
Operating Humidity: 5% to 95% (Non-Condensing)
