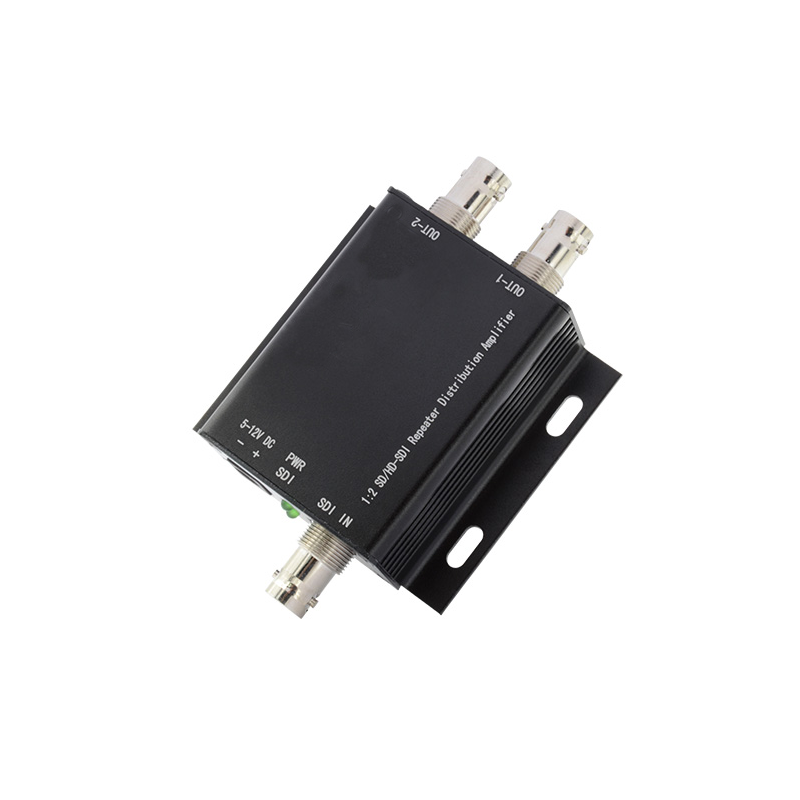

SDI Booster and splitter. 1:2 BNC. 3G-SDI, HD-SDI, SD-SDI, up to 400 meters. 3G-SDI up to 140 meters, 5 - 12VDC

Product code: REP-SDI-RS

SDI in to 2 x SDI out
Repeater (booster) up to 400 meters
3G-SDI, HD-SDI and SD-SDI
2 x amplifier outputs
3 x BNC male
Impedance: 75 ohms
Signal output: 0.8Vp-p
Video: 480i, 567i, 720p, 1080i, 1080p
Temperature: 0 - +40°C
Supply voltage: 5 - 12VDC (PSU included)
Flange mounted
Can daisy-chain with multiple devices

  • Add to Comparison Remove from Comparison
    • 1,044.00 DKK
    Tax excluded
    On the way in
    Quantity

    SDI repeater and amplifier with 2 SDI outputs. Data rate: 270Mbps, 1.485Gbps, 2.97Gbps
    Several repeaters can be connected in series.

    REP-SDI-RS
