Composite (CVBS), Component (YPbPr), VGA, HDMI, 2 x USB2.0 media memory for HDMI out. Video scaling. 5VDC
Product code: CNV-MULTI-HDMI4K
Video input formats:
Composite CVBS, PAL, NTSC, SECAM with stereo audio input
Component YPbPr: 1080p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 720p @ 50 / 60Hz, 576i / p, 480i / p with stereo audio input
VGA: 640x480 @ 60Hz, 800x600 @ 60Hz, 1024x768 @ 60Hz, 60Hz 1280x1024, 1280x720 @ 60Hz, 1360x768 @ 60Hz, 1440x900 @ 60Hz, 1680x1050 @ 60Hz, 1920x1080 @ 60Hz stereo audio with input
HDMI: 480i two 4K2K @ 30Hz
HDMI output: 480i, 720p, 1080p, 4k2k @ 39 Hz
Media Format USB memory stick: MPEG, H.264, RM / RMVB movie decode, JPEG, BMP , PNG
profile: MPEG1 / 2
audio: MP3 audio
Rev: TS / LO
CNV-MULTI-HDMI4K
1 Item
Data sheet
- Batteri
- CR2032 (medfølger ikke)
- Skærm
- 480i, 720p, 1080p, 4K2K @ 30Hz.
- Strømforsyning
- 5VDC / 1A (medfølger), mulighed for forsyning via USB (tilbehør).
- Dimensioner
- 172 x 130 x 43 mm (W x D x H)
- Indgang
- Component, Composite, VGA, 2 x HDMI, 2 x USB 2.0

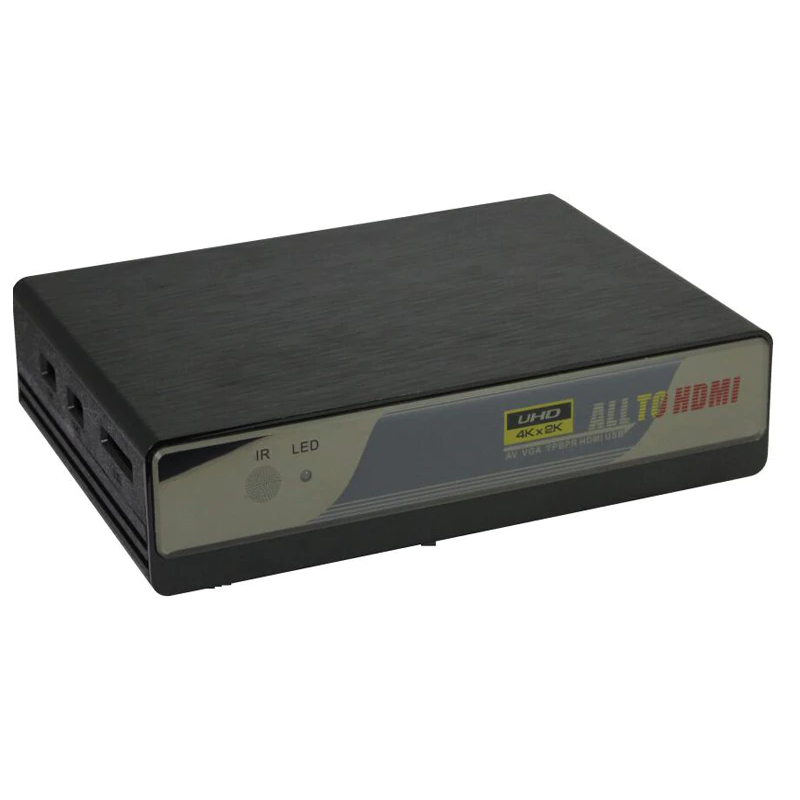

Analog video to HDMI converter with video scaler
Composite (CVBS) in
Component (YPbPr) in
VGA in
2 x HDMI in
2 x USB 2.0 for memory stick with media playing files
1 x HDMI out
Resolution of HDMI output: 480i, 720p, 1080p, 4K2K @ 30Hz.
Remote control setup (incl. but excl. CR2032 battery).
Supply voltage: 5VDC / 1A (PSU included)
Can be powered via the USB port (optional cable).
Dimensions: 172 x 130 x 43 mm (W x D x H)
